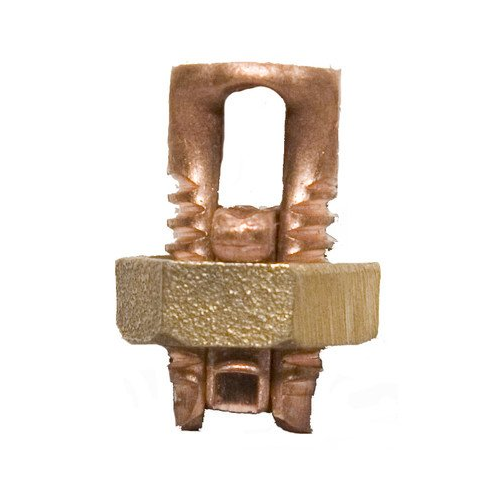

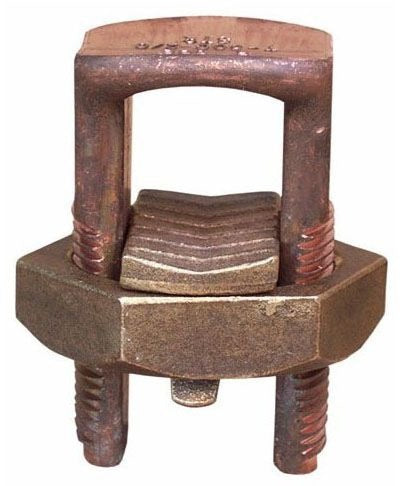

Morris Products 90320 #2 Copper Split Bolt 600 V (Size #2)

Product Description

Morris Products 90320 is a split bolt connector designed for #2 stranded copper conductors. The connector has a high-strength electrolytic copper body with a copper alloy nut and spacer, electro-tin plating to reduce contact resistance, and a 600 V rating. It is UL and CSA listed for grounding and direct burial applications, accepts run conductors from 6 AWG to 2 AWG and tap conductors from 14 AWG to 2 AWG, and has a 275 pound-inch torque rating.

• Designed for #2 stranded copper conductors; accepts run 6 AWG to 2 AWG and tap 14 AWG to 2 AWG
• High-strength electrolytic copper body with copper alloy nut and spacer and electro-tin plating to reduce contact resistance
• Rated 600 V; UL 467, UL486B and CSA listings; torque rating 275 pound-inch; suitable for grounding, bonding, and direct burial

Product Highlights

Split bolt connector for #2 conductors; electrolytic copper construction with electro-tin plating; 600 V rating; UL/CSA listed; torque 275 pound-inch; accepts run 6 AWG–2 AWG and tap 14 AWG–2 AWG.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90320
