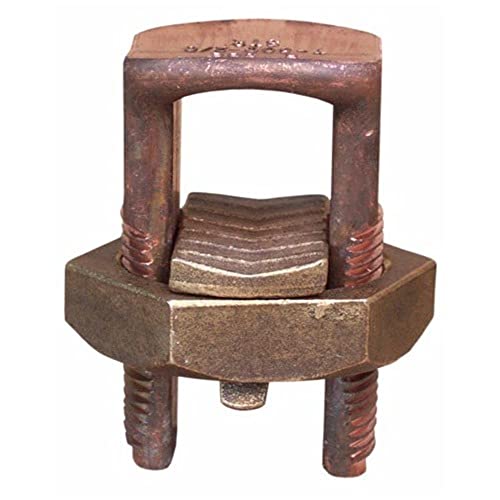

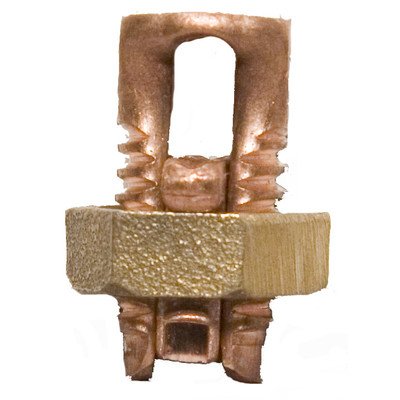

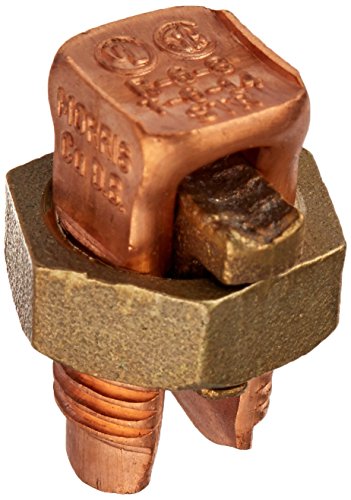

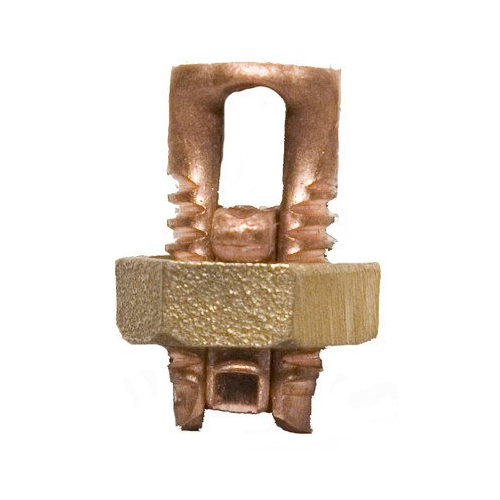

Morris Products 90316 Bolt Connector for Copper Conductors 600 Volts Number-6 Wire Range

Product Description

The Morris Products 90316 Bolt Connector is designed for copper conductors, providing secure connections for Number-6 wire range. This split bolt connector is rated for 600 Volts and is UL486A/CSA Listed. It is also UL467A Listed for direct burial and grounding/bonding applications up to 500MCM. Manufactured from a compact, high-strength copper alloy, it ensures maximum pressure and reliable electrical contact.

• UL listed for Copper and Copper weld stranded wires only
• Manufactured from compact, high strength, high copper alloy
• Features free running threads and easy to grip wrench flats

Product Highlights

Ensures secure, high-pressure connections for copper conductors, resistant to corrosion.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90316

Technical Specifications

• Manufacturer: Morris Products
• Brand: Morris Products
• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Number of Items: 1.0
• Package Quantity: 1.0
• MPN: 90316
• Wire Range: Number-6
• Voltage Rating: 600 volts
• Material: High Strength Elecrolytic Copper Body, Copper Alloy Nut And Spacer
• Temperature Range: 75 Deg C
• Applications: For Copper Conductors
• Color: Bronze
• Material Type: Metal
• Connector Type: Split Bolts
• Electrical Supplies Type: Mechanical Connectors
• Conductor Compatibility: Copper and Copper weld stranded wires only
• Certifications: UL486A/CSA Listed, UL467A Listed for Direct Burial & Grounding/Bonding Applications thru 500MCM
