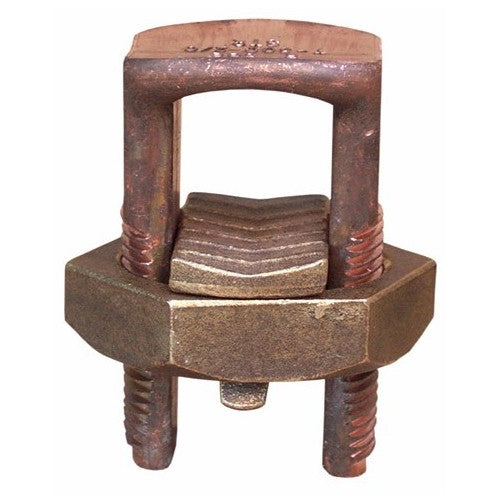

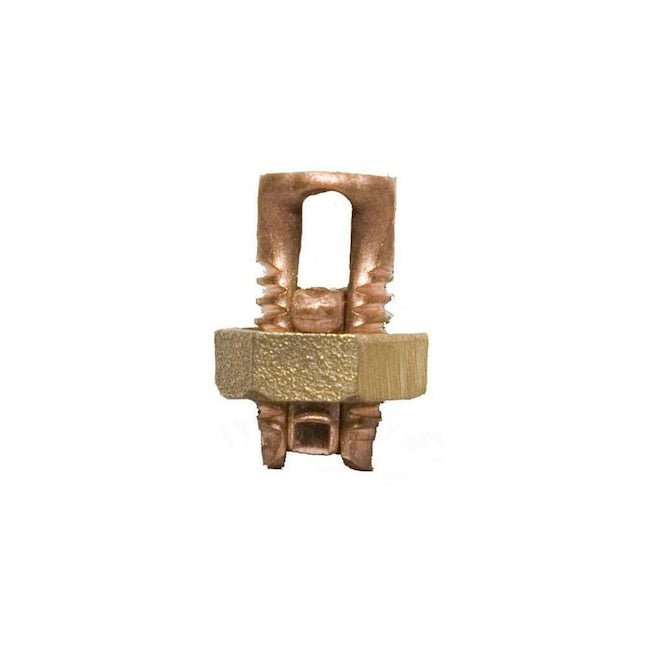

Morris Products 90314 Split Bolt Connectors for Copper Conductors No. 8

Product Description

The Morris Products 90314 Split Bolt Connector for Stranded Wires is designed for durability and ease of use. It provides maximum pressure, ensuring a secure connection for copper and copperweld stranded wires. Manufactured from a compact, high-strength copper alloy, this connector is rated for 600 Volts and is highly resistant to season cracking and corrosion. It features free-running threads and easy-to-grip wrench flats for efficient installation.

• UL listed for copper and copperweld stranded wires only
• Manufactured from compact, high strength, high copper alloy
• Provides a maximum pressure and ensures a secure connection on all combinations of connectors

Product Highlights

Durable split bolt connector for secure copper conductor connections, rated 600 Volts.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90314

Technical Specifications

• Max Run To Max Tap: 8-8
• Min Run To Min Tap: 10-16
• Max Run To Min Tap: 8-16
• Min Equal Tap and Run: 10-10
• Torque: 88 In-Lb
• Voltage Rating: 600 Volts
• Certifications: UL486A/CSA Listed, UL467A Listed for Direct Burial Grounding/Bonding Applications thru 500MCM
