Morris Products 88022 Cat 5E 11O Jack

Product Description

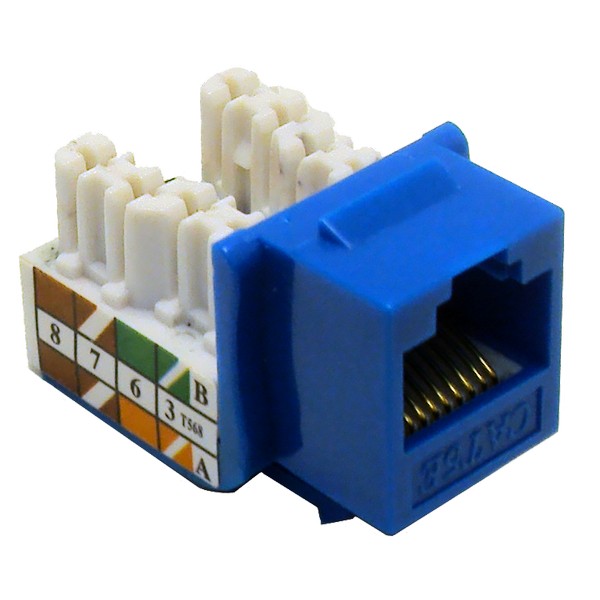

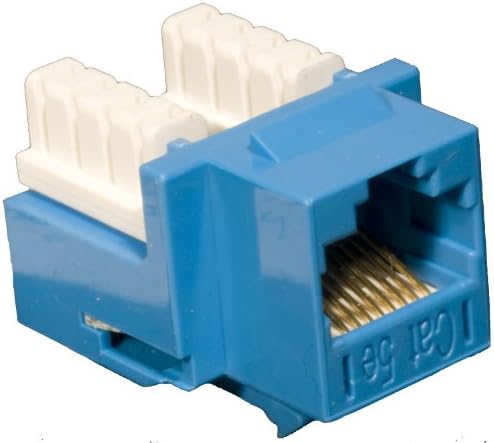

The Morris Products 88022 Cat5E (RJ45) Unshielded Keystone Jack is designed for multiple applications in voice or data networks. This keystone jack complies with TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, and NEC Article 800 standards. It supports a 100 MHz bandwidth and a 1000 Mbps (1 Gbps) data transmission rate. Featuring 110 punch down and Krone type termination, it accommodates 8 conductor 22-26 AWG solid and stranded wire. The contacts are equipped with 50u gold plating.

• A color-coded Cat5E Keystone Jack for multiple applications
• Supports 1000 Mbps (1 Gbps) data transmission rate with 100 MHz bandwidth
• Complies with TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, NEC Article 800

Product Highlights

Unshielded Cat5E (RJ45) keystone jack with 50u gold plated contacts for reliable voice and data network connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 88022
• Country of Origin: China

Technical Specifications

• Brand: Morris Products
• Manufacturer: Morris Products
• Certifications: UL Listed
• Connector Type: RJ45
• Cable Type: Ethernet
• Data Transfer Rate: 1 Gbps
• Standards Compliance: TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, NEC Article 800
• Bandwidth: 100 MHz
• Termination Type: 110 punch down & Krone Type
• Wire Gauge: 8 Conductor 22-26 AWG Solid & Stranded
• Wiring Color Codes: TIA/EIA 568A & 568B
• Contact Plating: 50u Gold
• Flammability Rating: UL94V-0
• Country of Origin: China
