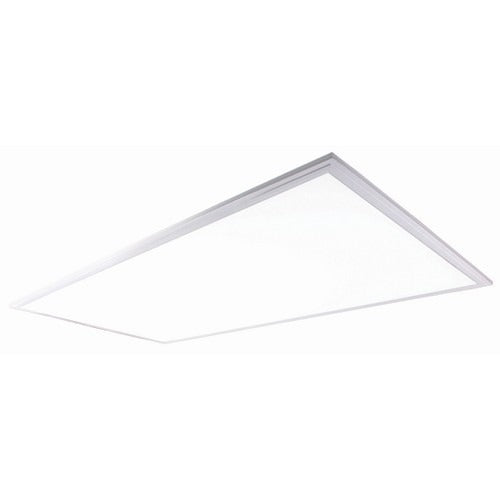

Morris Products 71770A LED Edgelit Panel 50W (2x4)

Product Description

The Morris Products 71770A is a 50W edge-lit LED panel intended for new construction or troffer replacement in commercial and institutional spaces. It uses a PMMA light guide and a flicker-free driver and supports 0-10V, PWM, and VR dimming methods. The panel is DLC and cULus listed, rated IP20 for dry locations, offers a CRI greater than 82, a 120 degree beam angle, and a 50,000+ hour LED life.

• PMMA light guide with flicker-free driver; dimming: 0-10V, PWM, VR (compatible with most LED dimming systems).
• 50,000+ hour LED life; CRI >82; 120 degree beam angle; power factor >0.9; THD <13.1%; SDCM <6; UGR <22.
• DLC listed and cULus listed; IP20 dry location rating; aluminum/zinc alloy backplate and aluminum frame.

Product Highlights

50W 2x4 edge-lit LED panel for troffer replacement; multiple dimming options; DLC and cULus listed; 50,000+ hour life.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 71770A
