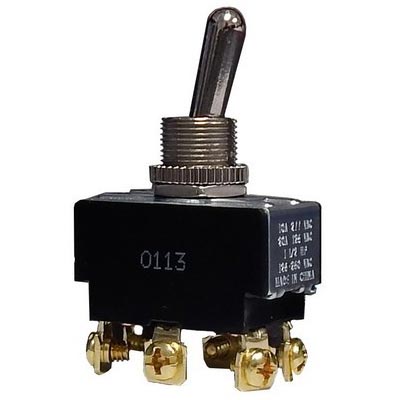

Morris Products 70130 On-On Heavy Duty Non-Metallic Toggle Switch, 125/277 VAC, 20/10 A, 1.5 hp, DPDT

Product Description

The Morris Products 70130 is a heavy-duty non-metallic toggle switch designed for various electrical applications. This switch features a double pole double throw (DPDT) configuration, ideal for controlling motors and tools. It operates at voltage ratings of 125/277 VAC with amperage ratings of 20/10 A, ensuring reliable performance for demanding tasks.

• DPDT design for versatile applications
• Operating temperature range between thirty-two to one hundred eighty-five degrees Fahrenheit
• Designed to withstand one hundred thousand operating cycles

Product Highlights

This toggle switch meets various compliance standards including UL, CSA, and ARRA, making it suitable for use in both residential and industrial settings.

Product Information

Standard Information

• Brand: Morris Products
• Part Number: P5430

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 20/10 A
• Application: For motor control and tool use
• Closed Contact Resistance: 50 mOhm
• Contact Configuration: DPDT
• Country of Origin: CN
• Dimensions: 1.3 in L x 0.76 in W x 0.8 in H
• Environmental Conditions: 32 to 185 deg F Operating Temperature
• Mfg Standards/Approvals: ARRA Compliant, Buy American Act Compliant, UL Listed, cULus Listed, CSA Certified
• Number of Poles: 2
• Operating Cycles: 100,000
• Power Rating: 1.5 hp
• Terminal Type: Screw
• Type: On-On Heavy Duty Non-Metallic
• Voltage Rating: 125/277 VAC
