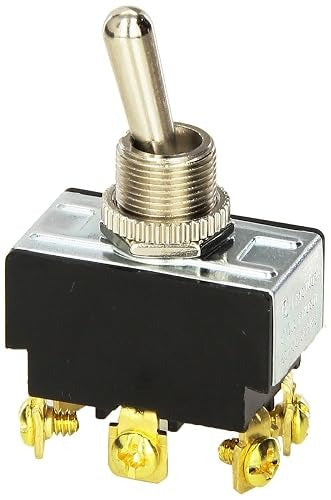

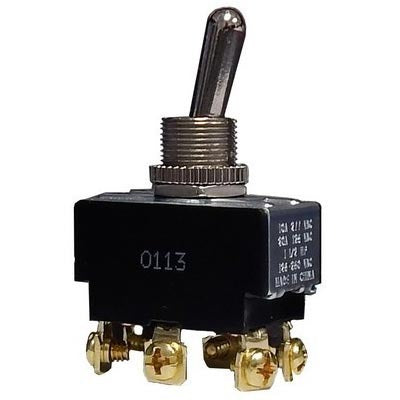

Morris Products 70130 2 Pole Toggle Switch DPDT On-On 1.5 HP (1 Pack)

Product Description

Morris Products 70130 is a heavy-duty 2-pole DPDT On-On toggle switch designed for residential and commercial electrical applications. The switch provides 6 screw terminals, three positions, and solid brass or nickel-plated bushings, and is rated 20 A at 125 VAC and 10 A at 277 VAC with 1500 V dielectric strength and 100,000 mechanical life cycles. Operating temperature range is 32°F to 185°F and it mounts in a 1/2 inch hole.

• Electrical ratings: 20 A at 125 VAC, 10 A at 277 VAC; 1.5 hp at 125/250 VAC; 1500 V dielectric strength.
• Mechanical and environmental: 100,000 mechanical life cycles; operating temperature 32°F to 185°F; insulation resistance 100 MΩ at 500 VDC.
• Construction and mounting: DPDT On-On configuration, 6 screw (copper) terminals, solid brass or nickel-plated bushings, 1/2 in mounting hole; dimensions approx. 1.3 x 0.76 x 0.8 in.

Product Highlights

Heavy-duty DPDT On-On toggle switch, 2 poles, 6 screw terminals, 20 A/10 A ratings, 1500 V dielectric strength, 100,000 cycles, 1/2 in mount.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 70130
• Country of Origin: China
