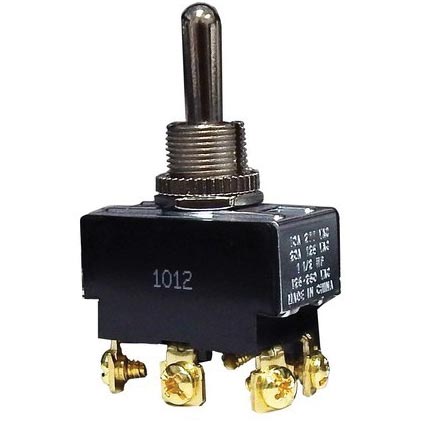

Morris Products 70110 On-Off-On Heavy Duty Non-Metallic Toggle Switch 125/277 VAC 20/10 A 1.5 hp

Product Description

The Morris Products 70110 is a reliable on-off-on toggle switch designed for a variety of electrical applications. This heavy-duty non-metallic switch operates at voltages of one hundred twenty-five to two hundred seventy-seven AC and supports a power rating of one point five horsepower. It is suitable for use in tool and motor control applications.

• Durable solid brass or nickel plated bushings
• Features a half-inch mounting hole
• DPDT configuration with three operating positions

Product Highlights

This switch is built to handle significant electrical loads while maintaining a secure connection.

Product Information

Standard Information

• Brand: Morris Products
• MPN: 70110

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 20/10 A
• Application: For motor control and tool
• Closed Contact Resistance: 50 mOhm
• Contact Configuration: DPDT
• Country of Origin: CN
• Dimensions: 1.3 in L x 0.76 in W x 0.8 in H
• Environmental Conditions: 32 to 185 deg F operating temperature
• Mfg Standards/Approvals: ARRA Compliant, Buy American Act Compliant, UL Listed, cULus Listed, CSA Certified
• Number of Poles: 2
• Operating Cycles: 100000
• Power Rating: 1.5 hp
• Terminal Type: Screw
• Type: On-Off-On Heavy Duty Non-Metallic
• Voltage Rating: 125/277 VAC
