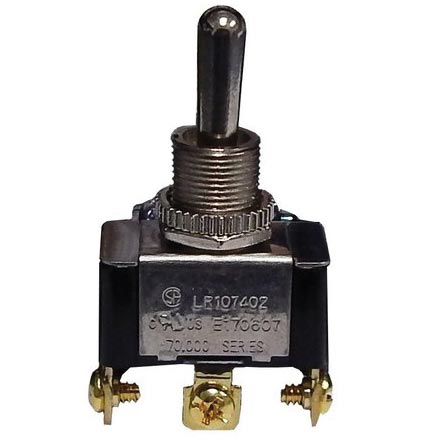

Morris Products 70080 On-Off-On Heavy Duty Non-Metallic Toggle Switch 125/277 VAC 20/10 A 0.75 hp

Product Description

The Morris Products 70080 is a heavy-duty non-metallic toggle switch designed for various electrical applications. It operates at 125/277 VAC with a capacity of 20 amps at 125 VAC and 10 amps at 277 VAC. This switch is suitable for motor control and other tool operations, ensuring reliable performance in demanding environments.

• SPDT configuration for versatile circuit control
• Built with solid brass or nickel plated bushings
• Durable design suitable for various installations

Product Highlights

This toggle switch supports efficient operation of electrical equipment in both residential and commercial settings.

Product Information

Standard Information

• Brand: Morris Products
• Part Number: P2456

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 20/10 A
• Application: For motor control and tools
• Closed Contact Resistance: 50 mOhm
• Contact Configuration: SPDT
• Country of Origin: CN
• Dimensions: 1.13 in L x 0.63 in W x 0.67 in H
• Environmental Conditions: 32 to 185 deg F Operating Temperature
• Mfg Standards/Approvals: ARRA Compliant | Buy American Act Compliant | UL Listed | cULus Listed | CSA Certified
• Number of Poles: 1
• Operating Cycles: 100000
• Power Rating: 0.75 hp
• Terminal Type: Screw
• Type: On-Off-On Heavy Duty Non-Metallic
• Voltage Rating: 125/277 VAC
