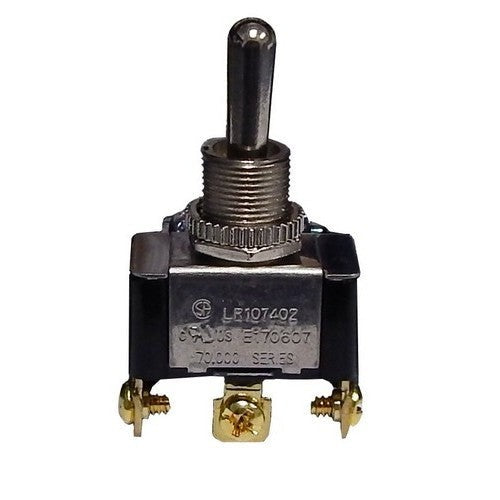

Morris Products 70080 On-Off-On Heavy Duty Non-Metallic Toggle Switch 0.75 hp (2 Pack)

Product Description

Morris Products 70080 is an On-Off-On heavy-duty non-metallic SPDT toggle switch rated 125/277 VAC with electrical ratings of 20 A at 125 VAC and 10 A at 277 VAC and a 0.75 hp motor rating. The switch uses three screw terminals and requires a 1/2 inch mounting hole. It is suitable for motor control and power tool applications where maintained on-off-on switching and a compact hole-mount design are needed.

• Single pole double throw (SPDT) On-Off-On maintained operation; rated 20 A @ 125 VAC, 10 A @ 277 VAC, 0.75 hp
• Three screw terminal connections with 1/2 inch mounting hole and solid brass or nickel-plated bushings
• Non-metallic housing, dielectric strength 1500 V, operating temperature 32 to 185 F, cURus/CSA/UL listings

Product Highlights

Heavy-duty SPDT on-off-on toggle switch, 125/277 VAC, 20 A/10 A ratings, 0.75 hp motor rating, 3 screw terminals, 1/2 in mounting

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 70080
• Country of Origin: China
