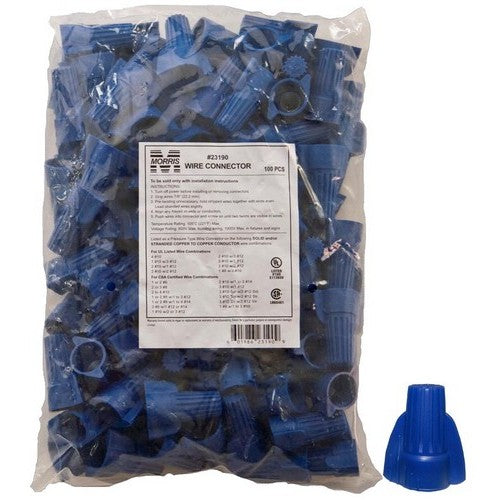

Morris Products 23190 winged twist connectors 600/1000 V pack of 100

Product Description

Morris Products 23190 Winged Twist Connectors simplify electrical wiring connections. These connectors feature flame retardant housing and a heavy-duty thick wall for durability. The live action square wire spring draws wires deep for a secure grip, eliminating the need to pre-twist conductors. A deep skirt entry protects against flashover and shorting, preventing wire strands from splaying. They are reusable for circuit additions and changes.

• Deep skirt entry provides protection from flashover and shorting.
• Live action square wire spring draws wires deep into the spring for secure grip.
• Flame retardant housing resistant to cracks and breakage.

Product Highlights

Winged twist connectors for secure electrical wiring connections, featuring flame retardant housing and a deep skirt entry for protection.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 23190

Technical Specifications

• Maximum Wire Combination: 1#8 w/3#10
• Minimum Wire Combination: 2#10 w/1#12
• Package Quantity: 100
• Temperature Rating: 221 Degrees F Maximum
• Certifications: cULus Listed
• Voltage Rating: 600/1000 V
• Wire Gauge: 12 to 8 AWG
• Housing Material: Thermoplastic
• Flame Retardancy: UL 94V-2
