Morris Products 23184 Twisted Wing Connector 600/1000 V 18 - 10 Awg Pack of 500

Product Description

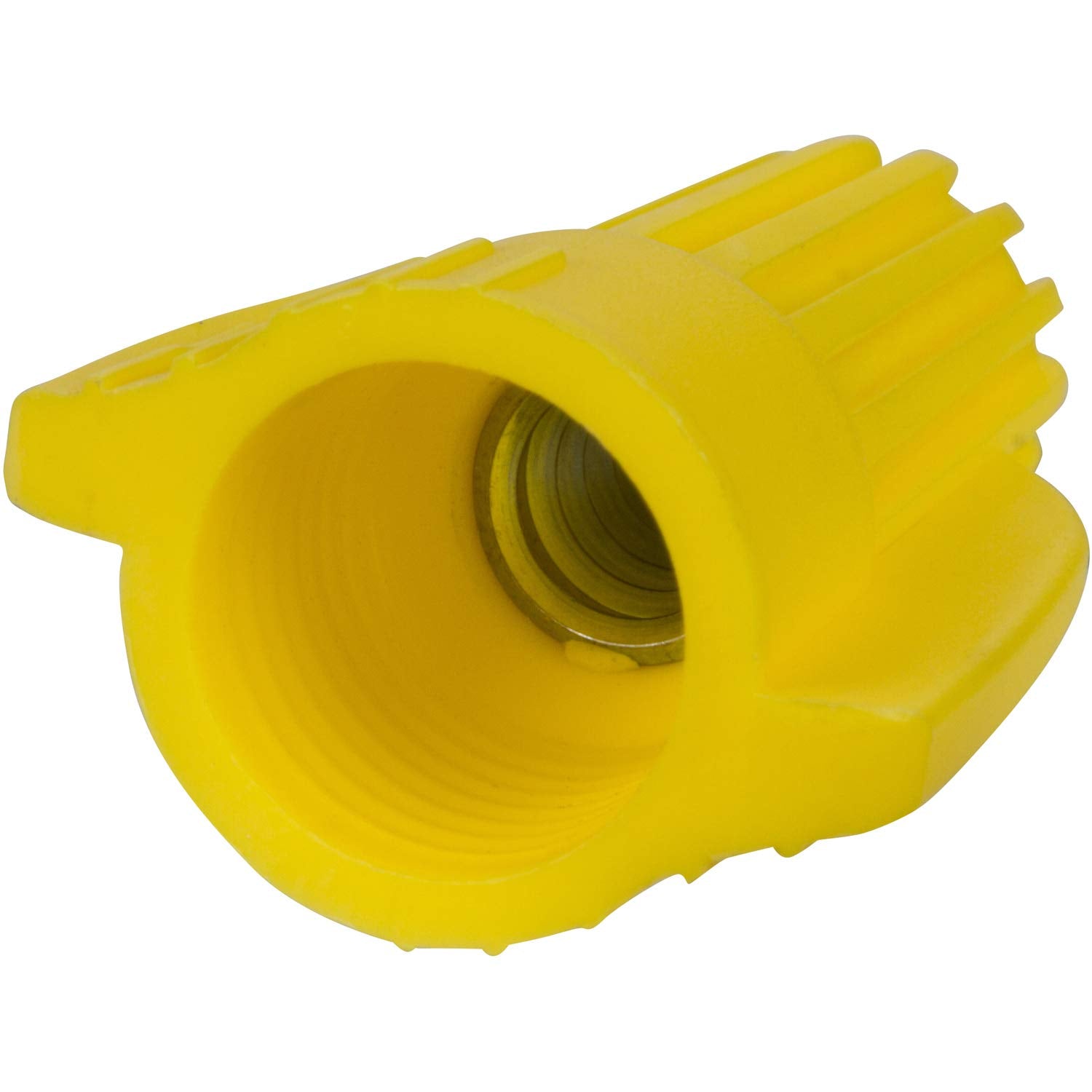

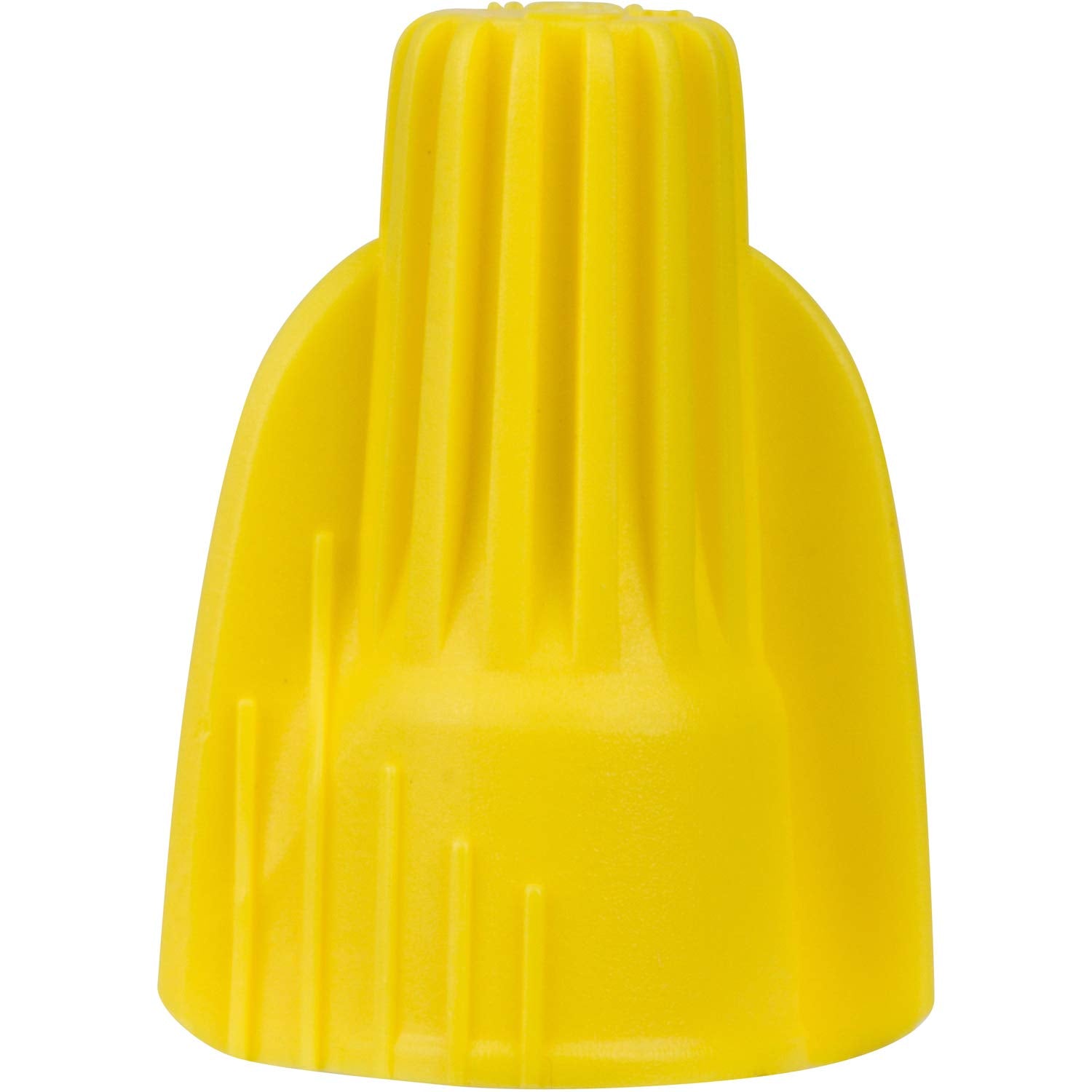

Morris Products 23184 Winged Twist Connectors simplify electrical wiring connections. These connectors feature a flame retardant, heavy-duty thick wall housing resistant to cracks and breakage. The live action square wire spring draws wires deep for a secure grip, eliminating the need to pre-twist conductors. A deep skirt entry protects against flashover and shorting, preventing wire strands from splaying. They are cULus Listed with a maximum temperature rating of 221 degrees F and suitable for 18 - 10 AWG wire combinations, up to 3 #12 max and 2 #18 min.

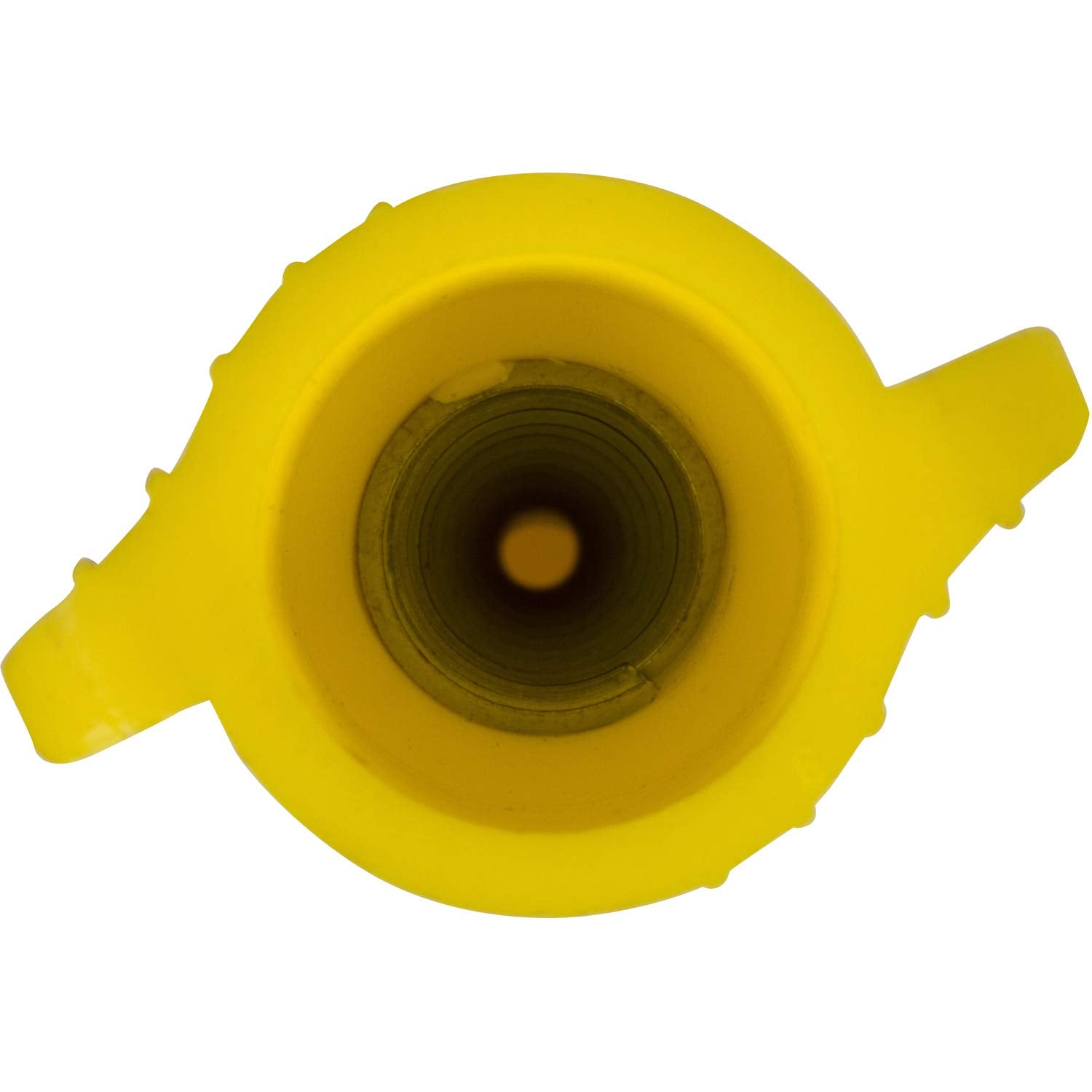

• Deep skirt entry protects against flashover and shorting by preventing wire strands from splaying.
• Live action square wire spring creates its own thread, eliminating the need to pre-twist conductors.
• Heavy-duty thick wall, flame retardant housing (UL 94V-2) resists cracks and breakage.

Product Highlights

Winged twist connector with flame retardant housing, deep skirt entry, and secure wire grip for electrical connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 23184

Technical Specifications

• Product Type: Electronic Component Terminal
• Manufacturer: Morris Products
• Brand: Morris Products
• MPN: 23184
• Wire Gauge: 18 - 10 AWG
• Max Wire Combination: 3 #12
• Min Wire Combination: 2 #18

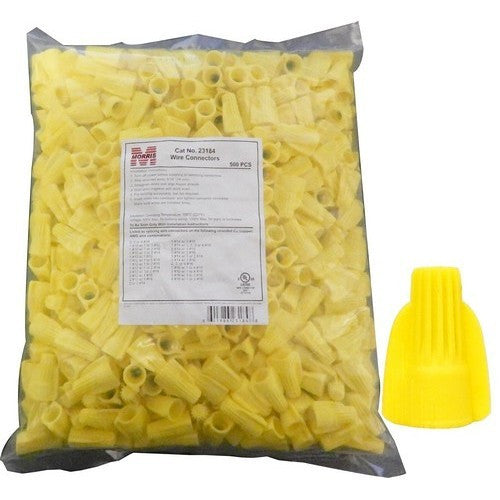

• Connectors per Pack: 500
• Model: 23184
• Temperature Rating: 221 Degrees F Maximum
• Certifications: cULus Listed
• Housing Material: Flame Retardant
• Housing Type: Heavy Duty Thick Wall
• UL Flammability Rating: UL 94V-2
• Voltage Rating: 600/1000 V
• Connector Type: Twist
• Contact Material: Copper
• Insulation Material: Nylon
