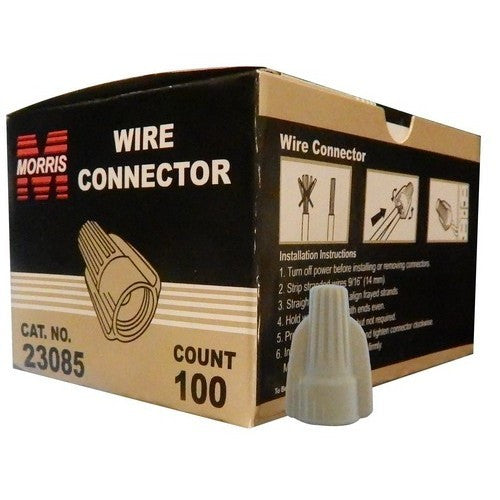

Morris Products 23085 winged twist connector 600/1000 V 100/BX

Product Description

The Morris Products 23085 Winged Twist Connector is designed for secure electrical wiring connections. It accommodates 22 to 10 AWG wire and is rated for 600/1000 V applications. Constructed from thermoplastic housing, it features a swept wing design for enhanced torque leverage and a ribbed cap for a secure grip. This connector is temperature rated at 221 degrees F and is suitable for various electrical installations, including 1000V fixtures and signs.

• Accommodates 22 to 10 AWG wire for versatile use.
• Rated for 600/1000 V, suitable for various electrical systems.
• Features a thermoplastic housing and a 221 degrees F temperature rating.

Product Highlights

Winged design for easy installation and secure wire connections, featuring a UL 94V-2 flame retardant housing.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 23085

Technical Specifications

• MPN: 23085
• Voltage Rating: 600/1000 V
• Wire Gauge: 22 to 10 AWG
• Housing Material: Thermoplastic
• Temperature Rating: 221 deg F
• Connector Type: Twist
• Certifications: cULus Listed
• Wire Combinations: Max: 3 #10, Min: 3 #22
• Flame Retardant Rating: UL 94V-2
