Morris Products 11616 22-16 #8 Nylon Spade Pack of 100

Product Description

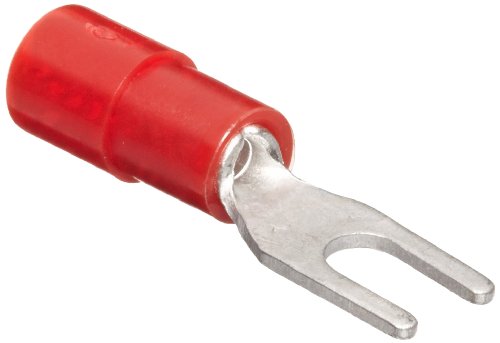

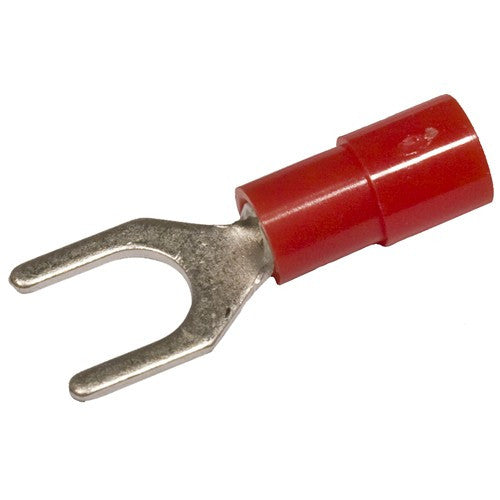

Morris Products 11616 Nylon Insulated Fork/Spade Terminals are designed for 22-16 AWG wire with a #8 stud size. These terminals are manufactured from high-strength copper alloy and electro-tin plated for corrosion resistance. They feature easy-entry expanded nylon insulation to prevent strand hang-up, increasing crimping rates and providing mechanical strain relief. Rated for 600 Volts maximum and 221°F (105°C), they are suitable for various electrical wiring and switchgear applications.

• Nylon Insulated Fork/Spade Terminals for secure electrical connections.
• Designed for 22-16 AWG wire with a #8 stud size.
• Electro-tin plated copper alloy construction for corrosion resistance.

Product Highlights

Nylon insulated fork/spade terminals for reliable electrical connections in wiring and switchgear applications.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 11616

Technical Specifications

• UPC: 601986116169
• Terminal Type: Nylon Spade Terminal
• Wire Range: 22-16 AWG
• Stud Size: #8
• Insulation Material: Nylon
• Terminal Material: High Strength Copper Alloy
• Finish: Electro-Tin
• Temperature Rating: 221°F (105°C)
• Voltage Rating: 600 Volts Max
• Maximum Current (22 AWG): 9 Amp
• Maximum Current (20 AWG): 12 Amp
• Maximum Current (18 AWG): 17 Amp
• Maximum Current (16 AWG): 18 Amp
• Certifications: cUL/UL Listed, RoHS Compliant
• Quantity Per Pack: 100
• Color: Red
