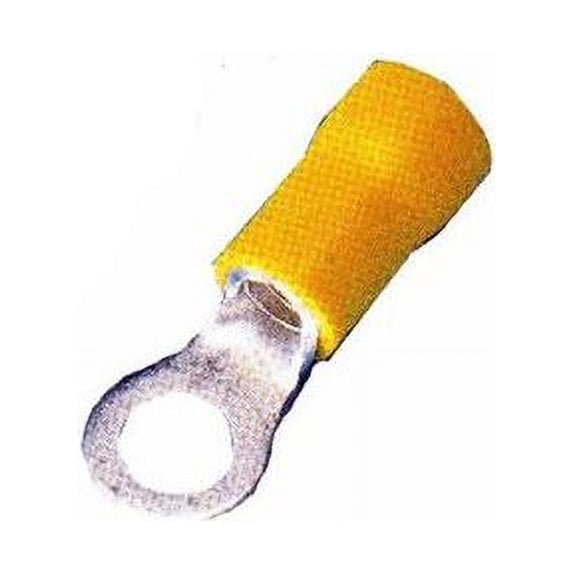

Morris Products 01064 12-10 #10 Vinyl Ring 50 A 600 V (Small Pkg)

Product Description

Morris Products 01064 is a vinyl insulated ring terminal designed for secure electrical connections. This terminal is rated for 600 V and 50 A, suitable for 12 to 10 AWG wire with a #10 stud size. Manufactured from copper alloy with electro-tin plating, it offers corrosion resistance and reliable performance in various electrical applications. The easy-entry expanded insulation facilitates quick crimping and provides mechanical strain relief, ensuring efficient wire termination.

• Rated for 600 V and 50 A, accommodating 12 to 10 AWG wire.
• Features vinyl insulation and a #10 stud size for secure connections.
• Constructed from copper alloy with electro-tin plating for corrosion resistance.

Product Highlights

Vinyl insulated ring terminal for 12-10 AWG wire and #10 stud, rated 600V/50A, with corrosion-resistant electro-tin plated copper alloy.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 01064

Technical Specifications

• Max Voltage: 600 V
• Max Current (10 AWG): 50 A
• Max Current (12 AWG): 35 Amp
• Max Current (14 AWG): 30 Amp
• Max Current (16 AWG): 18 Amp
• Max Current (18 AWG): 17 Amp
• Max Current (20 AWG): 12 Amp
• Max Current (22 AWG): 9 Amp
• Wire Gauge: 12 to 10 AWG
• Insulation Type: Vinyl
• Contact Material: Copper Alloy
• Contact Coating: Electro-Tin-Plated
• Ring Diameter: 0.209 in
• Stud Size: #10
• Insulation Color: Yellow
• Operating Temperature: 221°F (105°C)
• Certifications: cULus Listed, RoHS Compliant
• Pack Quantity: 25
