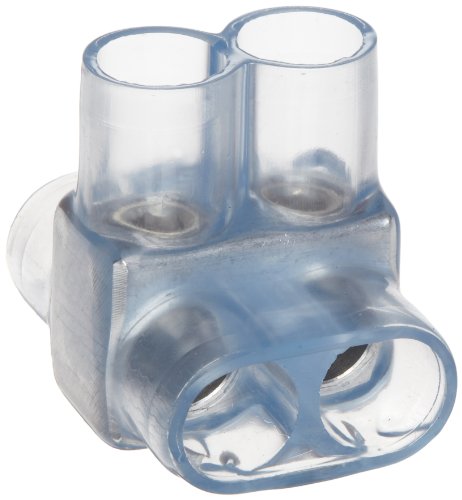

Morris 97412 350-2 Clear Insulated Connector

Product Description

The Morris 97412 350-2 Clear Insulated Connector ensures proper conductor insertion visibility. This multi-port connector is made of 6061-T6 aluminum. It can be used with both copper and aluminum wire. The single-piece clear insulation is designed with a chemical and abrasion-resistant coating and comes pre-filled with an oxide inhibitor.

• Clear insulation allows visual confirmation of conductor insertion
• Dual-rated for copper or aluminum wire use
• Insulated aluminum body removes the need for manual taping

Product Highlights

This connector is ideal for electrical applications requiring reliable connections.

Product Information

Standard Information

• Brand: Morris Products
• Part Number: 97412

Technical Specifications

• Material: Aluminum, Rubber
• Material Type: 6061-T6 Aluminum
• Connector Type: Dual Entry
• Electrical Supplies Type: Insulated Connectors
• Insulation Type: Rubber
• Maximum Voltage: 600 V
• Temperature Rating: -49 to 194 Degrees F
• Wire Range: 350-6
• Number of Ports: 2
• UL Listed: Yes
• Length: 2.25 inches
• Width: 3.13 inches
• Height: 2.50 inches
• UPC: 601986974127
• Manufacturer: Morris Products
