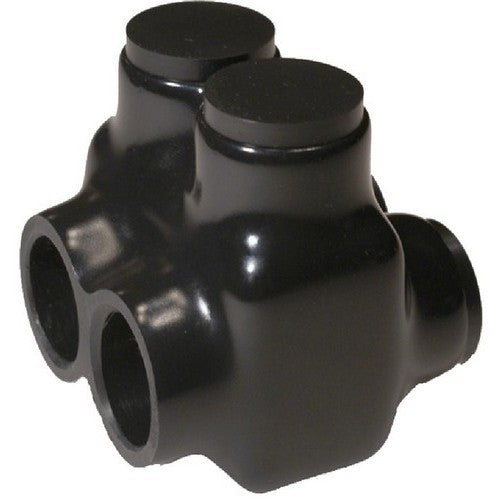

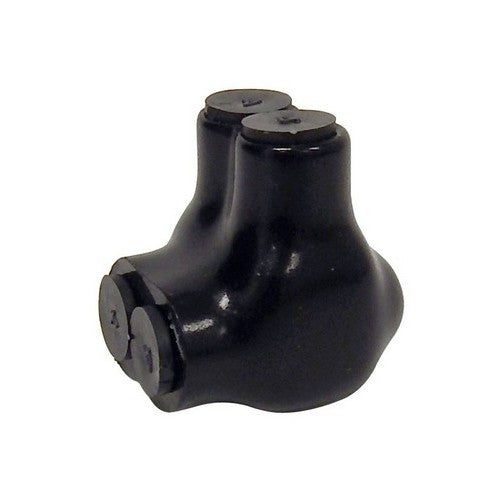

Morris 97122 Insulated 2 Conductor Dual Entry Splice 600 - 250

Product Description

The Morris Products 97122 is a dual entry insulated connector ideal for low-cost installations. This connector accommodates both copper and aluminum wires. It is built from 6061-T6 aluminum and features a durable high-dielectric rubber/vinyl coating. The unit comes pre-filled with oxide inhibitor for added protection.

• Optional wire entry from either side
• Easy re-entry for changes or inspection
• Plugs marked with connector max wire size

Product Highlights

This insulated connector is designed for troughs, gutters, panels, ducts, and wireways, offering a secure wire splicing solution without the need for tape.

Product Information

Standard Information

• Material: Aluminum, Rubber
• Connector Type: Dual Entry

Technical Specifications

• Electrical Supplies Type: Insulated Connectors
• Insulation Type: Rubber
• Maximum Voltage: 600V
• Temperature Rating: -49 to 194 degrees F
• Number of Ports: 2
• UL Listed: Yes
• Part Number: 97122
• Allen Type: 5/16 Hex
• Oxide Inhibitor: Pre-Filled
• Input Wire Range: 600MCM - 250MCM
• Rated: CU9AL, 600V
• Listings: ANSI C119.4, UL 486B
