MORRIS 97118 Insulated 2 Conductor Dual Entry Splice 2 Set Screws 250 - 6

Product Description

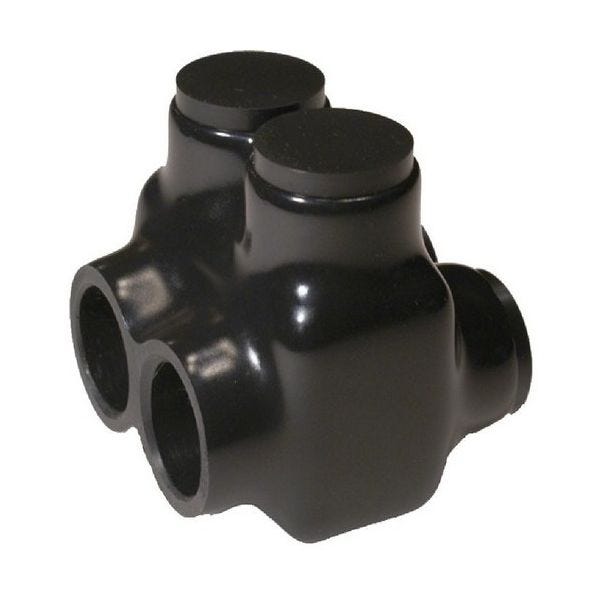

The MORRIS 97118 is a mechanical insulated 2-conductor dual entry connector suitable for both aluminum and copper conductors. It can accommodate conductor sizes ranging from six AWG to two hundred fifty kcmil and is rated for a maximum of six hundred VAC. The connector is equipped with a five-sixteenth inch Allen hex and uses black PVC insulation. It also comes pre-filled with an oxide inhibitor for improved performance.

• Dual entry connector made from durable 6061-T6 aluminum.
• Features a high dielectric rubber/vinyl coating.
• Allows easy re-entry for modifications and inspections.

Product Highlights

The MORRIS 97118 is designed to provide reliable connections with versatile wire entry options and ease of use.

Product Information

Standard Information

• Conductor Size: 6 AWG to 250 kcmil
• Voltage Rating: 600 VAC

Technical Specifications

• Temperature Rating: -49 to 194 degrees F
• Dimensions: 2.2 inches L x 2.41 inches W x 2.22 inches H
• Conductor Type: Aluminum/Copper
• Material: 6061-T6 Aluminum
• Type: 2-Conductor Dual Entry
