Morris 97113 Insulated 2 Conductor Dual Entry Splice 2 Set Screws Wire Range 2 - 14

Product Description

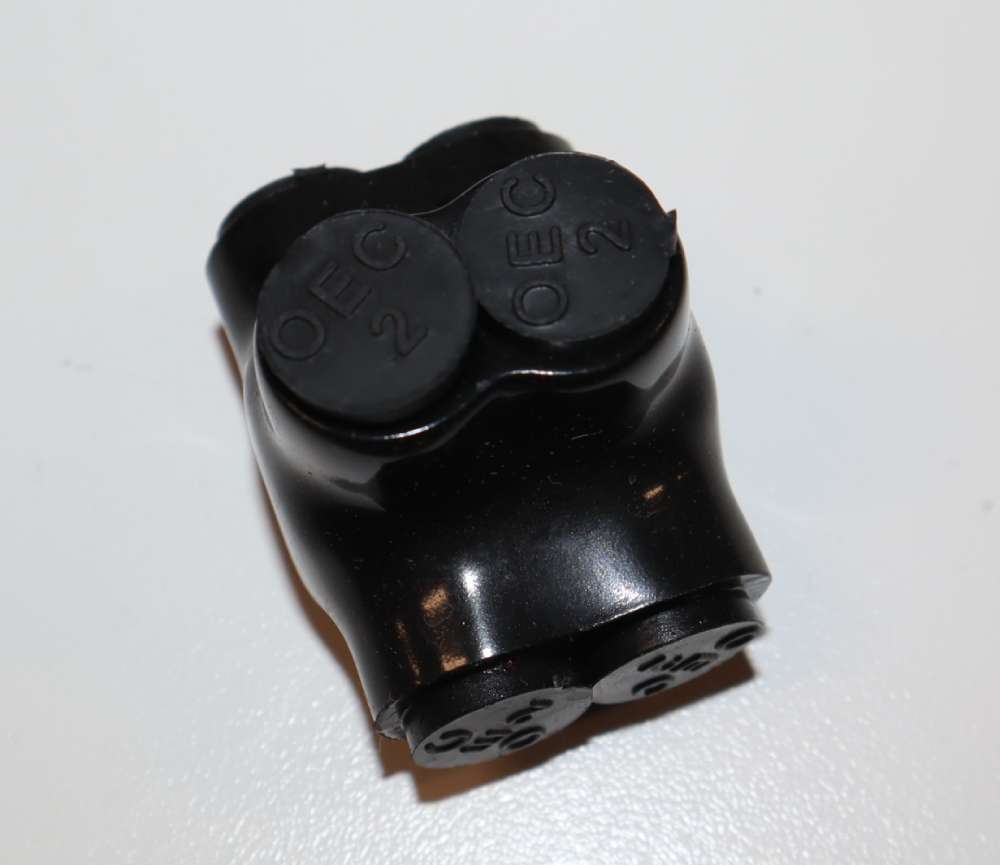

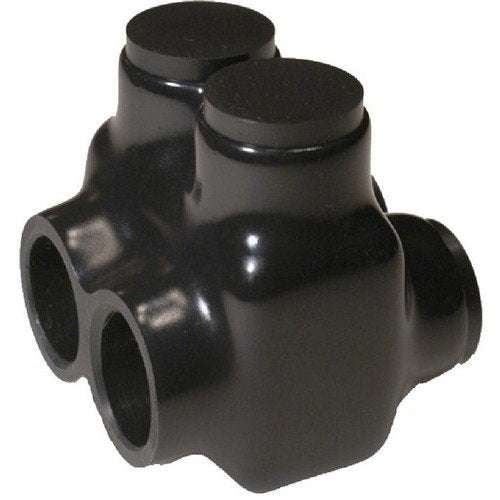

The Morris 97113 is an insulated dual-entry splice designed for two conductors. This splice features two set screws and accommodates a wire range of two to fourteen AWG. It allows wire entry from either side and comes with a pre-filled oxide inhibitor. This design facilitates easy re-entry for inspection, changes, or troubleshooting. Suitable for indoor use only.

• Wire entry option from both sides
• Compatible with both copper and aluminum wires
• Composed of a high-dielectric rubber/vinyl coating

Product Highlights

The Morris 97113 splice is dual-rated, ideal for applications involving aluminum or copper wiring. It has clear markings for wire size identification.

Product Information

Standard Information

• Brand: Morris
• Usage: Indoor Use Only

Technical Specifications

• Wire Range: 2 - 14 AWG
• Material: 6061-T6 Aluminum CU9AL
• Voltage: 600 Volt
• Temperature Range: -49 to 194 degrees Fahrenheit
• Listing: ANSI C119.4 & cULus 486b Listed through 750MCM
• Certification: UL/CSA Certified through 750MCM size
• Cable Rating: Rated for use with 194°F (90°C) cables
• Conductor Size: 14 to 2 AWG
• Voltage Rating: 600 VAC
• Conductor Type: Aluminum/Copper
• Type: 2-Conductor Dual Entry
• Height: 1.42 inches
• Length: 1.15 inches
• Width: 1.5 inches
• UL listed: Yes
