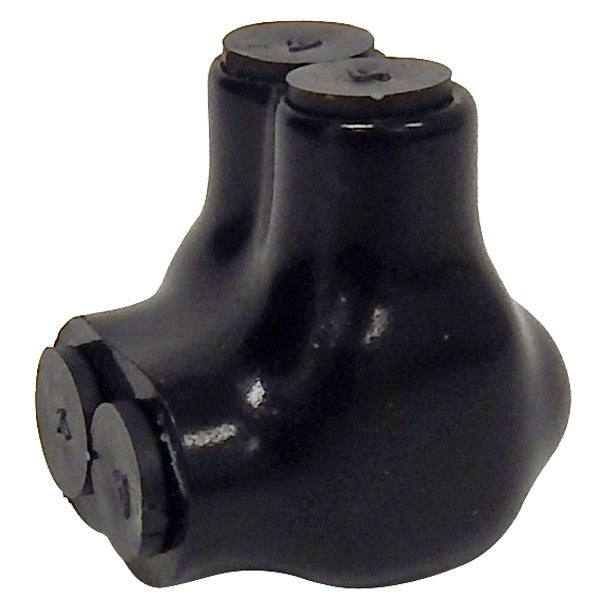

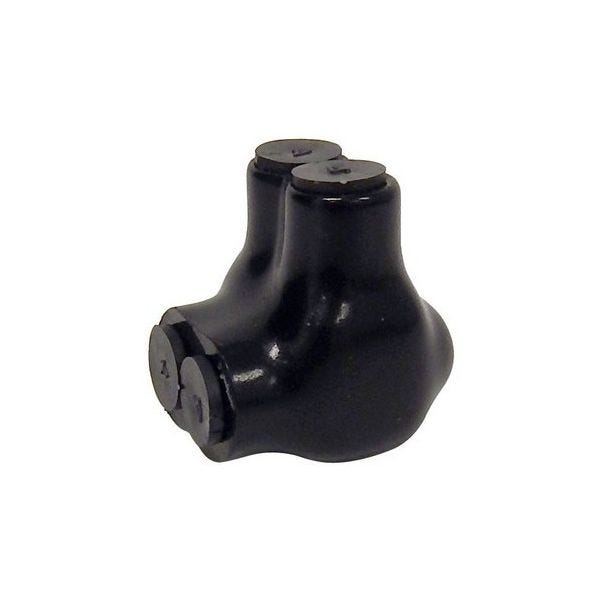

Morris 97103 #2-2 Black Insulated Connector Single

Product Description

The Morris 97103 is a #2-2 black insulated connector designed for easy and secure splicing. This single entry connector is built from 6061-T6 aluminum and is dual-rated for both copper and aluminum wires. The pre-filled oxide inhibitor ensures optimal performance and longevity, while the high-dielectric rubber and vinyl coating provides excellent insulation.

• Single entry design for straightforward splicing
• Constructed from durable 6061-T6 aluminum, suitable for copper or aluminum
• Temperature range of -49 to 194 degrees Fahrenheit

Product Highlights

Product Information

Standard Information

• Brand: Morris Products
• Part Number: 97103

Technical Specifications

• Material: Aluminum, Rubber
• Connector Type: Single Entry
• Maximum Voltage: 600 V
• Temperature Rating: -49 to 194 degrees Fahrenheit
• Wire Range: 2-14 AWG
• Number of Ports: 2
• UL Listed: Yes
• Compatible Wire Gauge (AWG): #2 STR to #14 STR
• Connector Style: 2-Port
• Voltage Rating: 600 VAC
• Insulation: Black PVC
• Dimensions: 1.15 inches length, 1.5 inches width, 1.42 inches height
