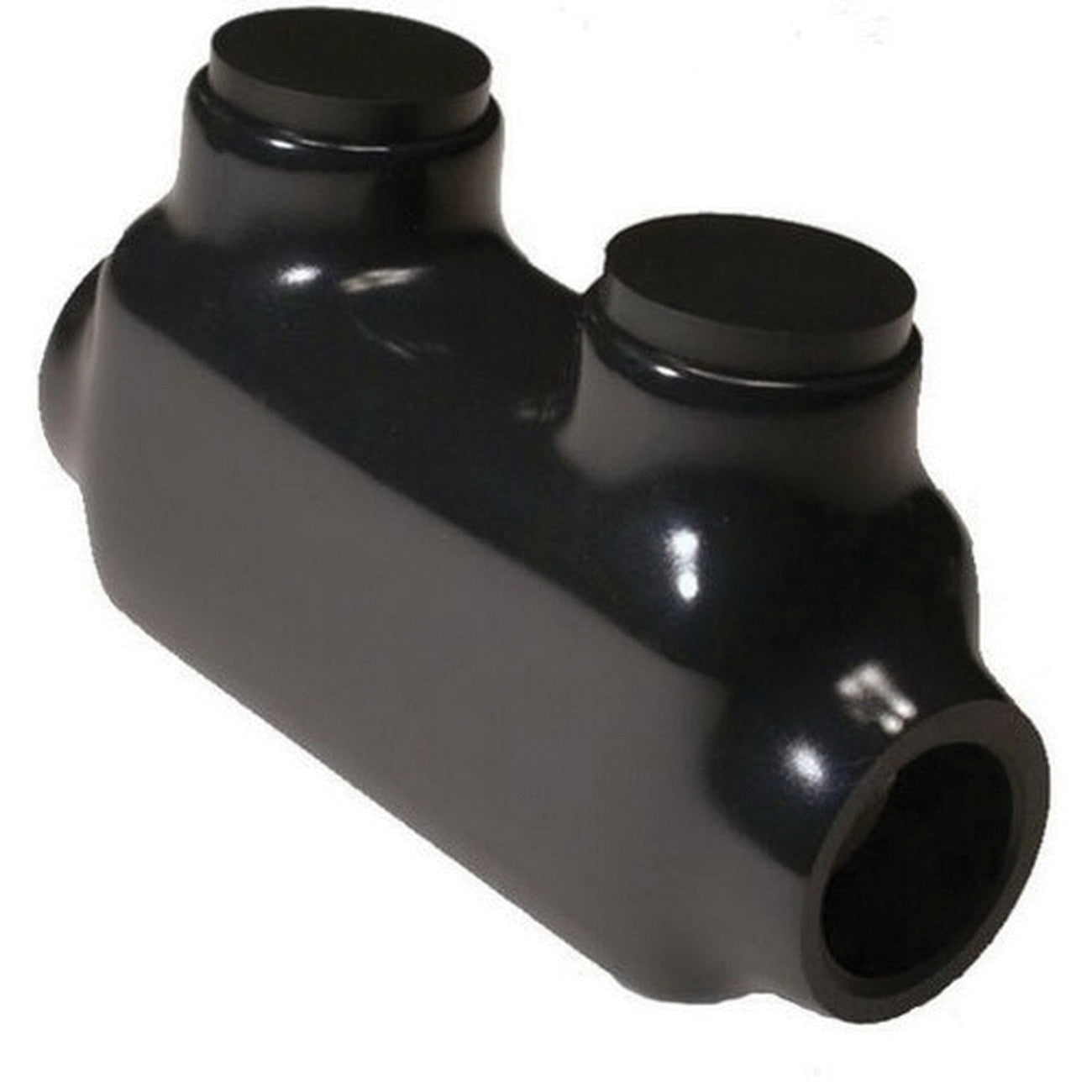

Morris 97017 Insulated In-Line Splice Mechanical Connector 2-14 AWG Black

Product Description

The Morris Insulated In-Line Splice Mechanical Connector, MPN 97017, is designed for use with conductors sized between two and fourteen American Wire Gauge (AWG). It features a voltage rating of six hundred volts and PVC insulation for enhanced safety.

• Accommodates conductor sizes from 2 to 14 AWG
• Temperature rating from -49 to 194 degrees Fahrenheit
• Constructed from 6061-T6 aluminum alloy for durability

Product Highlights

This connector is suitable for gutter, raceway, and enclosure power distribution applications. It meets ANSI C119.4 standards, UL 486B, and is cUL certified.

Product Information

Standard Information

• Brand: Morris
• Manufacturer: Morris Products

Technical Specifications

• UPC: 60198697017
• Manufacturer Part Number: 97017
• Insulation Material: PVC
• Material: 60601-T6 Plated Aluminum
• Dimensions: 3.46 inches length x 0.82 inches width x 1.62 inches height
• Conductor Size: 2-14 AWG
• Color: Black
• Temperature Rating: -49 to 194 degrees Fahrenheit
• Voltage Rating: 600 Volt
• Standards: ANSI C119.4, UL 486B, cUL Certified
