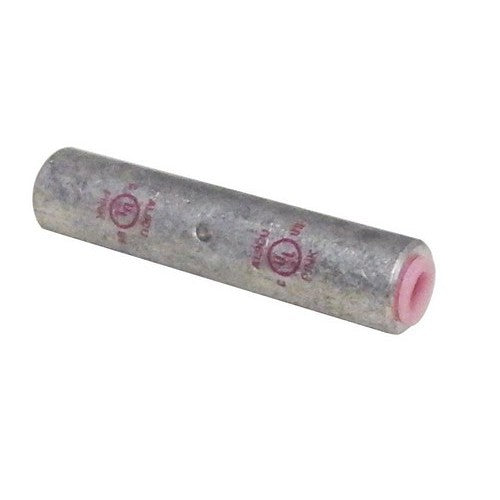

MORRIS 93224 Aluminum Long Cylinder Compression Splices 4/0 AWG

Product Description

The MORRIS 93224 aluminum long barrel compression splices work well with both copper and aluminum conductors. They are made from seamless aluminum with electro-tin plating to resist corrosion and reduce contact resistance. The splices are color coded for easy identification and include a marked die index.

• AL9CU Dual Rated for Aluminum and Copper conductors
• Coated with Oxide Inhibitor and capped
• Features a Center Stop for proper cable installation

Product Highlights

These aluminum compression splices ensure multiple crimps through long barrels. They meet standards as UL486B Listed AL9CU and cULus Listed, rated for up to 35KV when installed correctly.

Product Information

Standard Information

• Brand: MORRIS
• MPN: 93224

Technical Specifications

• Wire Range: 4/0 AWG Stranded
• Inside Diameter: 0.55 inches
• Outside Diameter: 0.84 inches
• Length: 3.13 inches
• Material: Aluminum
• Conductor Type: Copper/Aluminum
