Morris 93214 long barrel compression splice, aluminum 2 str, 31-.53 id-od, 2.38-inch length, 5-pack

Product Description

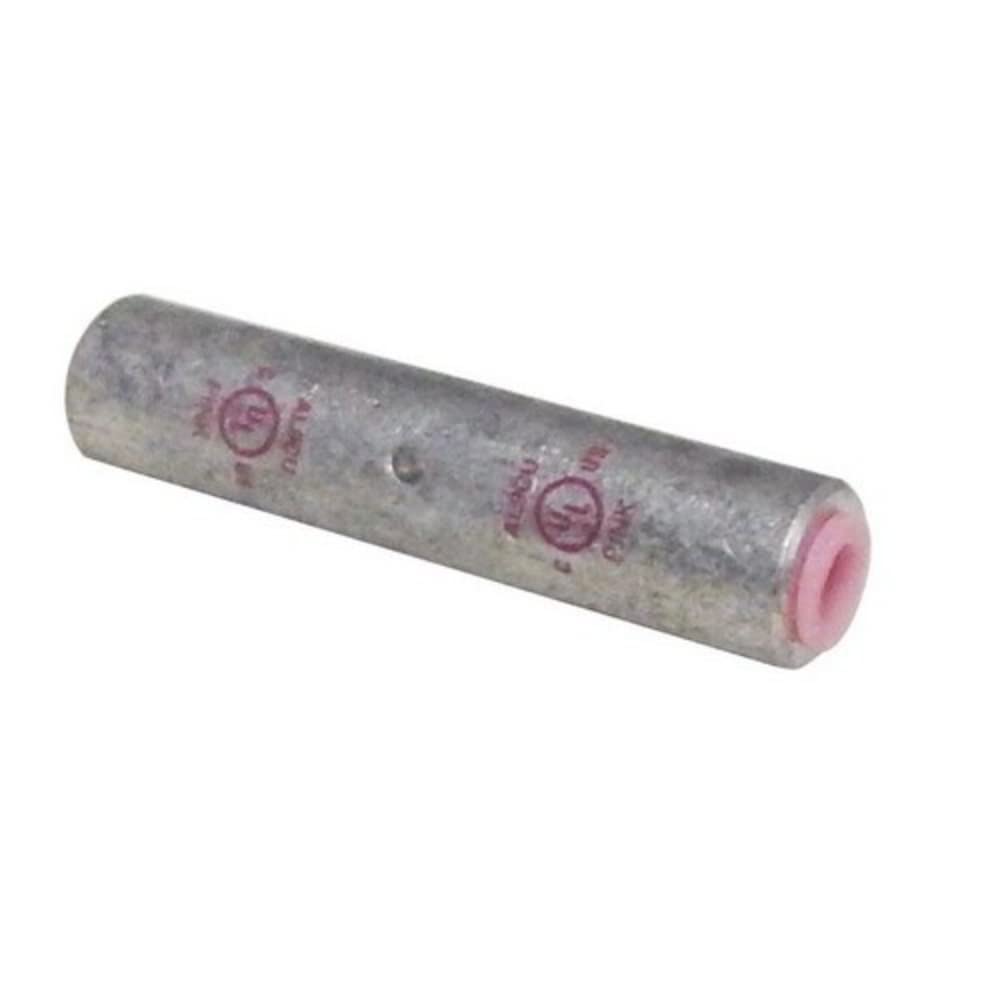

The Morris 93214 Long Barrel Compression Splice is an aluminum connector designed for electrical applications. It features uniform bright electro-tin plating to resist corrosion and enhance conductivity. The splice is marked with a die index and crimp marks for proper installation, and its long barrel accommodates multiple crimps. It is UL486B Listed AL9CU and cULus Listed, suitable for up to 35KV when correctly installed.

• Connector barrels are coated with oxide inhibitor and capped.
• Features a center stop to ensure proper cable installation.
• Constructed from high-conductivity seamless aluminum.

Product Highlights

Aluminum compression splice with electro-tin plating, UL486B and cULus listed for 35KV applications.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93214

Technical Specifications

• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Number of Items: 5
• Manufacturer: Morris Products
• Product Type Detail: Long Barrel Compression Splice
• Material: Aluminum
• Wire Size: 2 STR
• ID-OD: 0.31-0.53
• Length: 2.38 inches
• Brand: Morris
• MPN: 93214
