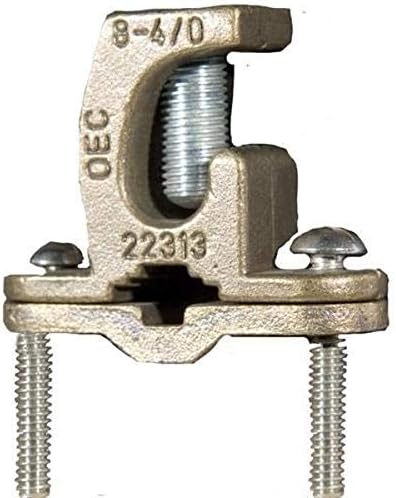

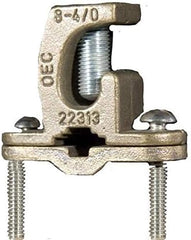

Morris 91655 lay-in ground clamp 1-1/4 inches - 2 inches

Product Description

The Morris 91655 is a heavy-duty lay-in ground clamp designed for connecting ground conductors to water pipes, ground rods, copper tubing, or rebar up to 1 inch in diameter. It accommodates large AWG ground wires, specifically #8 through 4/0 ground conductors, making it suitable for various grounding applications. Its lay-in feature allows for fast insertion of the ground electrode, ideal for continuous loop ground grids. Constructed from high-strength, high-conductivity copper with stainless steel set screws, it ensures maximum conductivity and strength. This clamp is UL467 Listed and cULus certified for direct burial in earth and concrete.

• Heavy-duty lay-in design for easy ground electrode insertion.
• Accommodates #8 through 4/0 AWG ground conductors.
• UL467 Listed and cULus certified for direct burial in earth and concrete.

Product Highlights

High-conductivity copper clamp with stainless steel set screws, ideal for large AWG ground wires and continuous loop ground grids.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 91655
• Country of Origin: China

Technical Specifications

• Material: High Strength High Conductivity Copper
• UPC: 601986916554
• Clamp Type: Heavy Duty Lay-In Ground Clamp
• Pipe/Rod Compatibility: 1-1/4" - 2"
• Conductor Compatibility: #8 AWG to 4/0 AWG
• Set Screws: Stainless Steel
• Certifications: UL467, cULus
• Installation: Direct Burial (Earth & Concrete)
