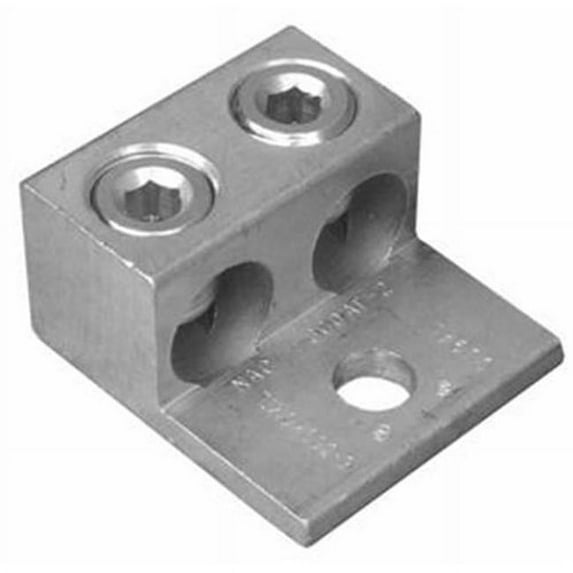

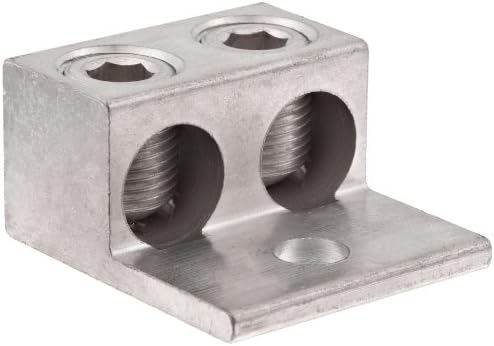

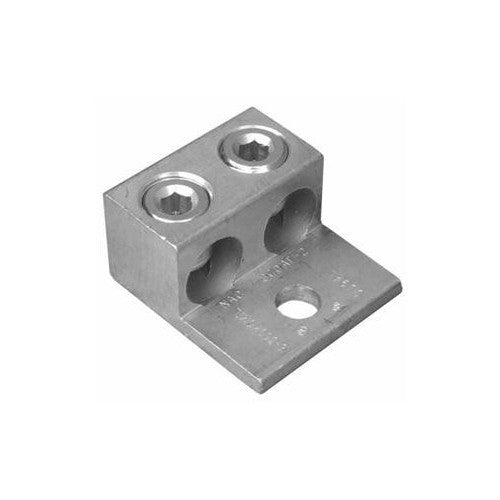

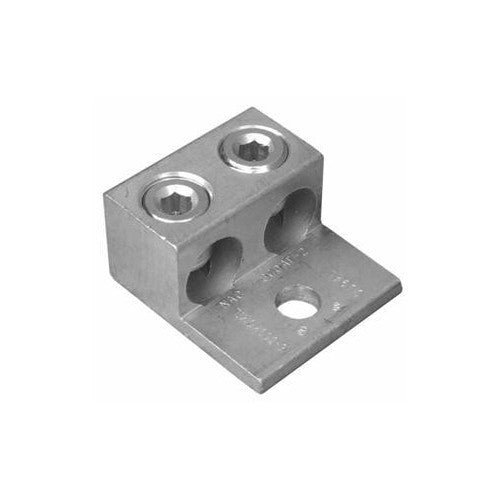

Morris 90816 mechanical lug two conductors one hole mount aluminum 600V 250 AWG 250MCM - 6SOL. wire range

Product Description

The Morris 90816 mechanical lug is constructed from high-strength 6061-T6 aluminum alloy, providing maximum conductivity and durability for electrical applications. Dual-rated for copper and aluminum conductors, this connector offers versatile installation. Its electro-tin plated finish ensures corrosion resistance and reliable conductivity. Rated for 600V and 90°C (194°F), it accommodates a 250 AWG, 250MCM - 6SOL wire range and allows for tool-friendly assembly.

• Constructed from premium 6061-T6 aluminum alloy for superior durability and maximum conductivity.
• Dual-rated for use with both copper and aluminum conductors (AL9CU), offering flexible installation.
• Electro-tin plated finish provides corrosion resistance and ensures reliable, long-lasting conductivity.

Product Highlights

High-strength aluminum mechanical lug, dual-rated for copper and aluminum, with corrosion-resistant tin plating for reliable electrical connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90816

Technical Specifications

• Connector Type: Screw
• Terminal: Screw Terminal
• Temperature Rating: 221 degree fahrenheit
• Voltage Rating: 600 Volts
• Contact Material: Aluminum
• Material: 6061-T6 Aluminum Alloy
• Color: Silver
• Type: Mechanical Lug, Mechanical Cable Lug
• Number of Conductors: 2
• Number of Holes: 1
• Certifications: UL 486B, CSA Certified
• Bolt Size: 0.41 in.
• Connection: One Hole Mount
• Wire Range: 250 AWG, 250MCM - 6SOL
