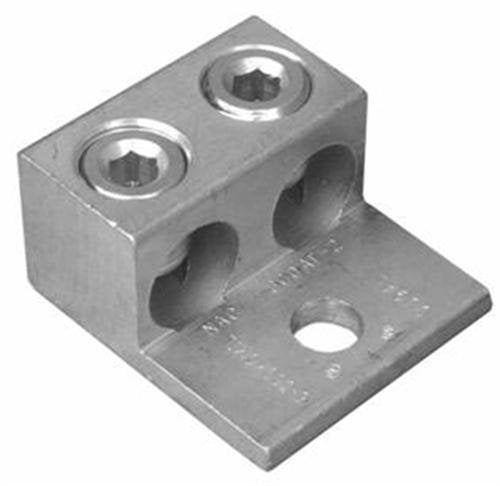

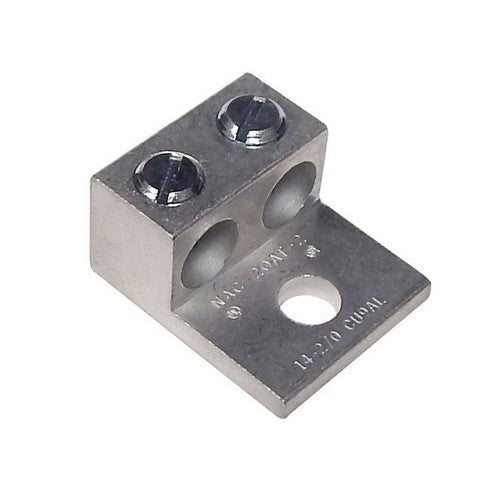

Morris 90814 2/0 2-conductor 1-hole aluminum lug 600v

Product Description

The Morris Products 90814 is a mechanical cable lug designed for electrical applications. Constructed from premium 6061-T6 aluminum alloy, this lug ensures durability and conductivity. It is dual-rated for both copper and aluminum conductors (AL9CU) and features electro-tin plating for corrosion resistance. Rated for 600V and 90°C (194°F), it supports 2/0 AWG wire and offers tool-friendly installation with slotted screws. This lug is UL486B/CSA Listed, suitable for various electrical connections.

• Premium 6061-T6 Aluminum Construction for durability and conductivity.
• Dual-rated for both copper and aluminum conductors (AL9CU).
• Electro-tin plated for enhanced corrosion resistance and reliable conductivity.

Product Highlights

This Morris 90814 mechanical lug is UL486B/CSA Listed, rated for 600V and 90°C, and features a 1-hole mount with slotted screws for 2/0 AWG wire.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90814

Technical Specifications

• Brand: Morris Products Inc.
• MPN: 90814
• Conductor Size: 2/0
• Conductor Count: 2
• Hole Count: 1
• Material: Aluminum
• Type: Lug
• Product Type Detail: Mechanical Cable Lug
• Commercial Code: 6412
• Color: Silver
• Contact Material: Aluminum
• Terminal: Screw Terminal
• Maximum Voltage: 600 Volts
• Specification Met: CSA
• Electrical Supplies Type: Aluminum Mechanical Lugs
• Wire Range: 2/0STR. - 14SOL.
• UL Listed: Yes
• Stud Size: 0.28 in
• Contact Coating: Electro-Tin-Plated
• Conductor Rating: AL9CU Dual Rated for both Copper and Aluminum Conductors
• Assembly Tool: Screwdriver or allen wrench
• Reusability: Re-usable
• Mounting Hole Drilling: NEMA Standard 1-3/4” Centers
• Screws: Slotted
