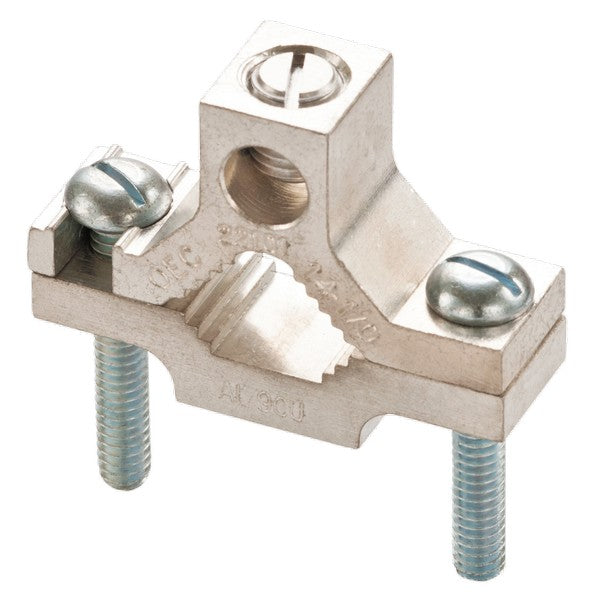

Morris 90632 aluminum ground clamp feed through 1-1/4-2

Product Description

Morris Products 90632 Aluminum Ground Pipe Clamps are designed for use in grounding pipes, conduits, and ground rods. These AL9CU dual-rated clamps connect copper or aluminum ground electrodes to water pipes, ground rods, copper water pipes, galvanized pipes, or steel conduits. Manufactured from high-strength 6061-T6 Aluminum alloy, they are tin-plated for low contact resistance and corrosion protection. The clamps feature a tin-plated aluminum set screw and zinc-plated steel mounting hardware, ensuring enhanced corrosion resistance. They are cULus Listed.

• For use in grounding pipes, conduits, and ground rods
• Connects copper or aluminum ground electrodes to various pipe types
• Dual rated for copper or aluminum conductors

Product Highlights

Tin-plated 6061-T6 Aluminum alloy ground clamp, AL9CU dual-rated for copper and aluminum conductors, cULus Listed.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90632

Technical Specifications

• Brand: Morris Products
• MPN: 90632
• Material: Aluminum
• Type: Ground Clamp
• Pipe Size Range: 1-1/4-2
• Conductor Rating: AL9CU Dual Rated
• Set Screw Material: Tin-Plated Aluminum
• Mounting Hardware: Zinc Plated Steel
• Certifications: cULus Listed
