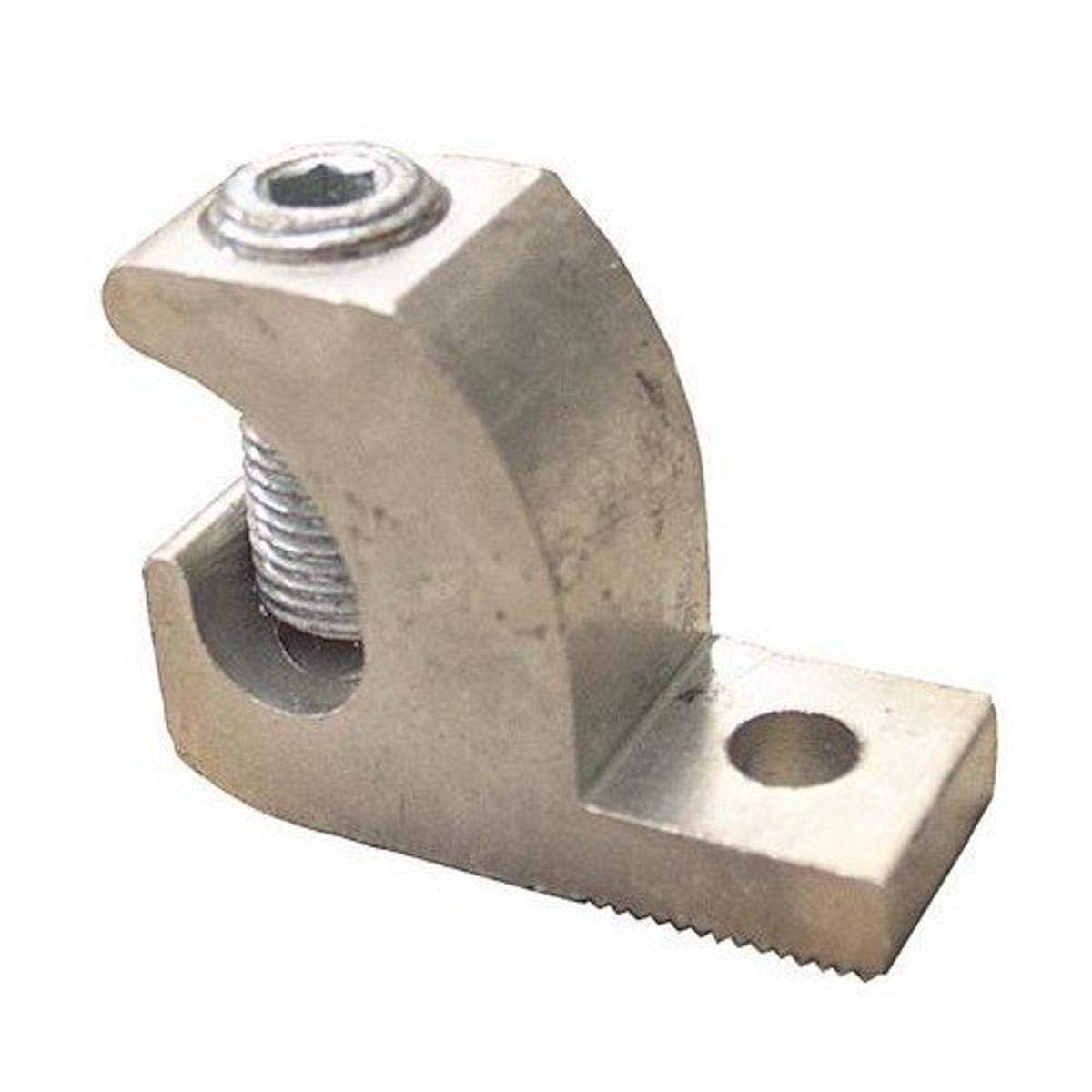

Morris 90574 lay-in connector for copper and aluminum conductors 4AWG, No. 4-No. 14 wire range

Product Description

The Morris Products 90574 is an aluminum lay-in connector designed for use with both copper and aluminum conductors. It is AL9CU dual rated and electro tin plated, ensuring low contact resistance and corrosion protection. Manufactured from high strength 6061-T6 Aluminum alloy, this connector is UL486B/CSA Listed and suitable for 4AWG to No. 14 wire range with a #10 hole.

• Designed for use on Conduit Grounding Bushings and other Grounding Applications.
• Open face design allows installer to quickly lay-in the grounding conductor as a jumper to multiple conduits with no break in the ground conductor.
• Manufactured from high strength 6061-T6 Aluminum alloy to ensure both maximum strength and conductivity.

Product Highlights

Dual-rated AL9CU aluminum lay-in connector for copper and aluminum conductors, featuring electro tin plating and UL486B/CSA listing.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90574

Technical Specifications

• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Manufacturer: Morris Products
• Brand: Morris
• Material: High strength 6061-T6 Aluminum alloy
• Conductor Rating: AL9CU Dual rated for both Copper and Aluminum conductors
• Plating: Electro Tin Plated
• Certifications: UL486B/CSA Listed
• Hole Size: #10
• Conductor Range: 4AWG, No. 4-No. 14 Wire Range
