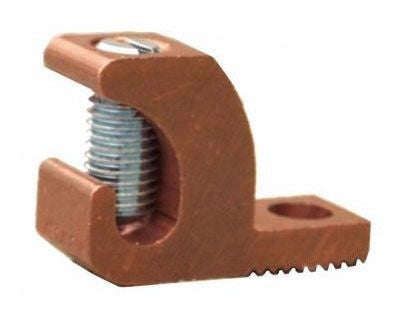

Morris 90572 #4 Copper Lay-In Lug

Product Description

Morris 90572 #4 Copper Lay-In Lug is a copper connector designed for effective grounding. This product is made from dipped electrolytic copper alloy, ensuring durability and reliability. It is perfect for applications requiring strong connections in various electrical systems.

• Lay-in type for quick installation.
• Compatible with copper conductors ranging from fourteen AWG to four AWG.
• UL approved for safety and efficiency.

Product Highlights

This lay-in lug simplifies the grounding process in both residential and commercial installations, particularly around water features like swimming pools.

Product Information

Standard Information

• Manufacturer: Morris Products, Inc.
• UPC: 60198690572

Technical Specifications

• Type: Lay-In
• Material: Dipped Electrolytic Copper Alloy
• Overall Length: 1.04 Inch
• Minimum Conductor Size: 14 AWG
• Maximum Conductor Size: 4 AWG
• Pad Size: 0.47 Inch Width
• Stud Size: 0.26 Inch
• Screw Type: 1/4 Inch-28 TPI Set Screw
• Approval: UL (Canada and US), UL 467, CSA C22.2
