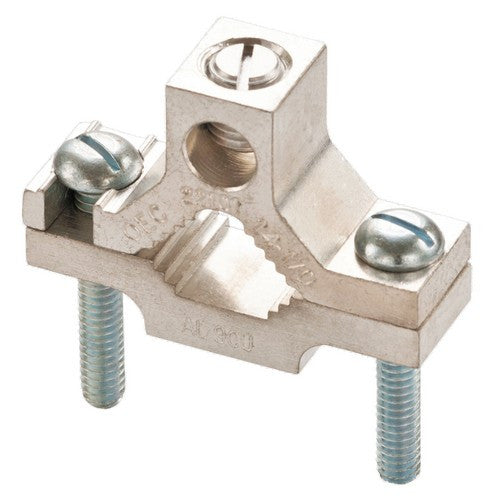

Morris 90561 aluminum ground clamp feed thru 2-1/2-4

Product Description

The Morris 90561 Aluminum Ground Clamp Feed Thru is designed for grounding applications, connecting copper or aluminum ground electrodes to various pipes and rods. This tin-plated aluminum ground pipe clamp is suitable for water pipes, ground rods, galvanized pipes, and steel conduits. It is manufactured from high-strength 6061-T6 Aluminum alloy and is AL9CU dual-rated for both copper and aluminum conductors, ensuring versatile use in electrical grounding systems.

• Connects copper or aluminum ground electrodes to water pipes, ground rods, and conduits.
• AL9CU Dual Rated for use with both copper and aluminum conductors.
• Constructed from high-strength 6061-T6 Aluminum alloy with tin-plating for corrosion protection.

Product Highlights

Tin-plated aluminum ground clamp for secure electrical grounding connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90561

Technical Specifications

• Brand: Morris
• MPN: 90561
• SKU: MORRIS-90561
• UPC: 601986905619
• Pipe Size Compatibility: 2-1/2 - 4 inches
• Material: 6061-T6 Aluminum alloy
• Plating: Tin-Plated
• Set Screw Material: Tin-Plated Aluminum
• Mounting Hardware Material: Zinc Plated Steel
• Conductor Rating: AL9CU Dual Rated for Copper or Aluminum
• Certifications: cULus Listed
