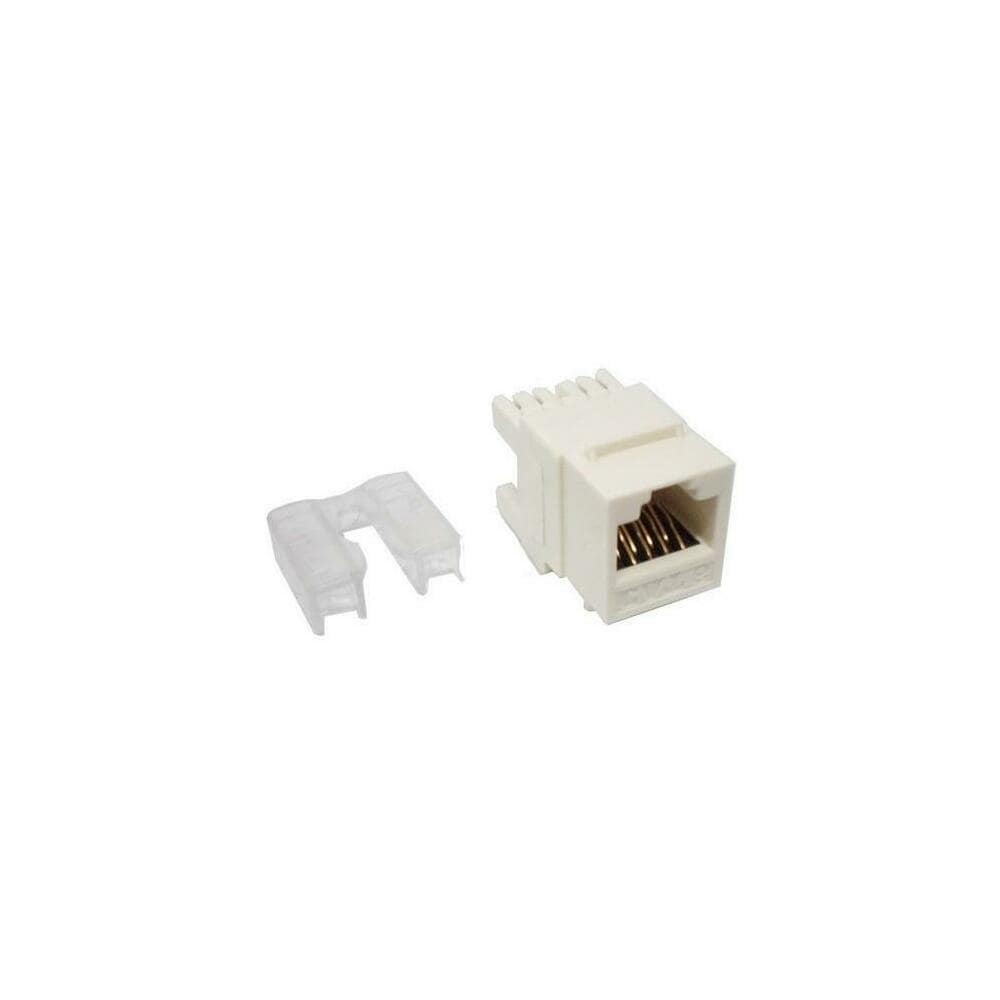

MORRIS 88031 Cat6 RJ-45 Unshielded Keystone Jacks Rear Entry

Product Description

The Morris Products 88031 is a Cat6 RJ-45 unshielded keystone jack featuring rear entry. This product is intended for datacommunications applications. It is designed to enhance insertion loss, return loss, NEXT, and FEXT performance, offering a reliable network connection.

• Works for high-speed datacommunications.
• Meets TIA/EIA-568-C-2 and ISO 1801 2nd Edition Class E standards.
• Includes 110 punch down and Krone type termination.

Product Highlights

The Cat6 keystone jack provides data transmission rates up to ten Gbps and has gold-plated contacts for improved conductivity. It is UL Listed for safety standards.

Product Information

Standard Information

• Band Width: 10 Gbps 250MHz
• Certifications: UL Listed

Technical Specifications

• Jack Connector Type: RJ45 UTP
• Material: Polycarbonate Housing, Gold Plated Contacts
• Mfg Standard: UL94V-0, TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, NEC Article 800
• Flammability Rating: UL94V-0
