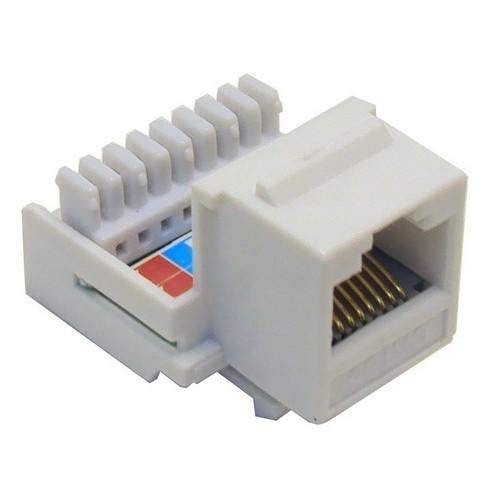

Morris 88016 Cat5E (RJ45) Unshielded Keystone Jack, Rear Entry (Pack of 51 Pcs)

Product Description

The Morris 88016 is a Cat5E (RJ45) unshielded keystone jack designed for rear entry installations in voice or data networks. This jack supports data transmission rates up to 1000 Mbps (1 Gbps) with a 100 Mhz bandwidth, making it suitable for high-speed network applications. It features 110 punch down and Krone type termination for 8-conductor 22-26 AWG solid and stranded wire, conforming to TIA/EIA 568A and 568B wiring color codes. Contacts are 50u gold plated for reliable connections.

• Supports 1000 Mbps (1 Gbps) data transmission with 100 Mhz bandwidth.
• Features 110 punch down and Krone type termination for 8-conductor wire.
• Complies with TIA/EIA-568-C-2 and ISO 1801 Class E standards.

Product Highlights

Unshielded Cat5E RJ45 keystone jack for reliable network connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 88016

Technical Specifications

• Keystone Jack Type: Cat5E (RJ45) Unshielded, Rear Entry
• Pack Quantity: 51
• Compliance: TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, NEC Article 800
• Bandwidth: 100 Mhz
• Data Transmission Rate: 1000 Mbps (1 Gbps)
• Termination Type: 110 punch down and Krone Type
• Conductor: 8 Conductor 22-26 Awg Solid and Stranded wire
• Wiring Color Codes: TIA/EIA 568A and 568B
• Contacts Plating: 50u Gold
• Flammability Rating: UL94V-0
• Certifications: UL Listed
