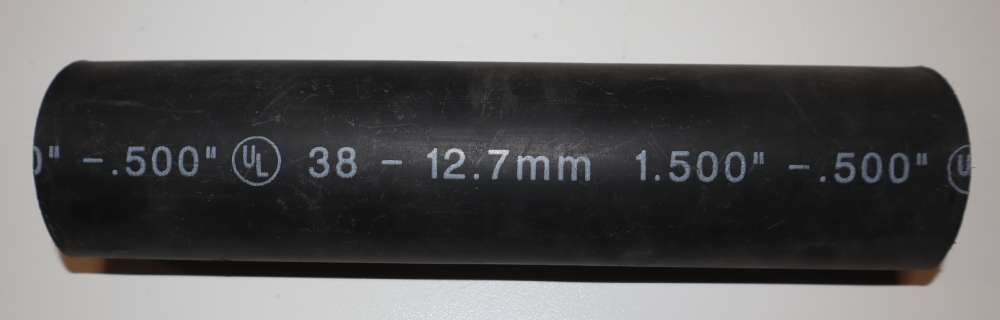

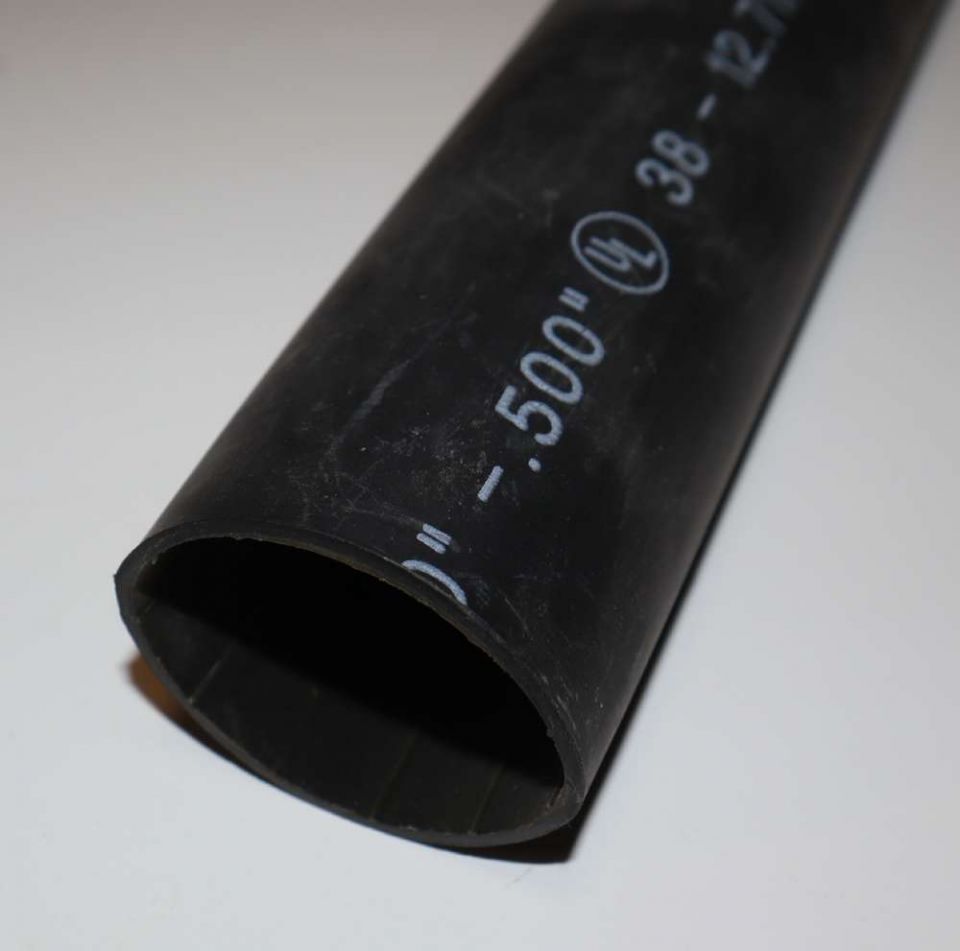

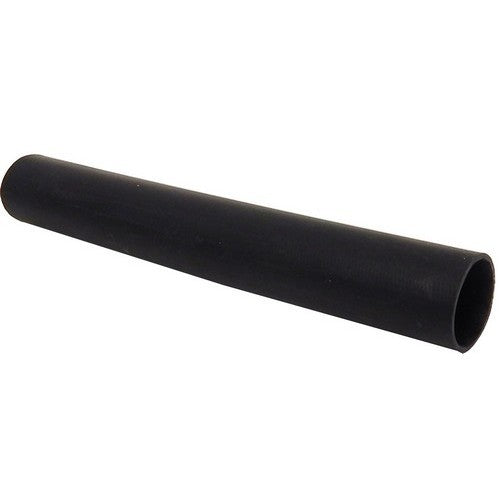

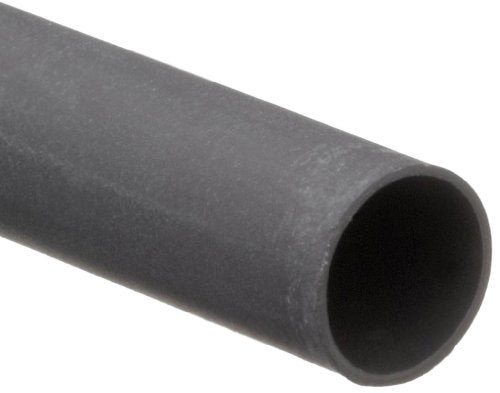

Morris 68015 Heat Shrink Tubing 2/0-350

Product Description

The Morris 68015 Heat Shrink Tubing is designed to provide insulation and environmental protection for various wire sizes. This product features a flame-retardant, cross-linked polyolefin construction, making it suitable for demanding installations. The tubing offers a three to one shrink ratio, accommodating different shapes and contours efficiently.

• Expanded inner diameter of one and one-half inches
• Recovered inner diameter of 0.47 inches
• Wall thickness after shrinking is 0.16 inches

Product Highlights

This heat shrink tubing is ideal for temperatures ranging from negative sixty-seven to two hundred thirty degrees Fahrenheit. The thermoplastic meltable adhesive sealant liner provides effective insulation and environmental protection.

Product Information

Standard Information

• Product Name: Morris 1.50 Inch - .47 Inch 2/0-350 Heat Shrink Tubing (68015)
• Brand: Morris

Technical Specifications

• Inner Diameter Expanded: 1-1/2 inches
• Inner Diameter Recovered: 0.47 inches
• Wall Thickness Recovered: 0.16 inches
• Wire Size: 2/0 AWG to 350 kcmil
• Shrink Ratio: 3:1
• Length: 8 inches
• Shrink Temperature: 248 degrees Fahrenheit
• Material: Polyolefin
