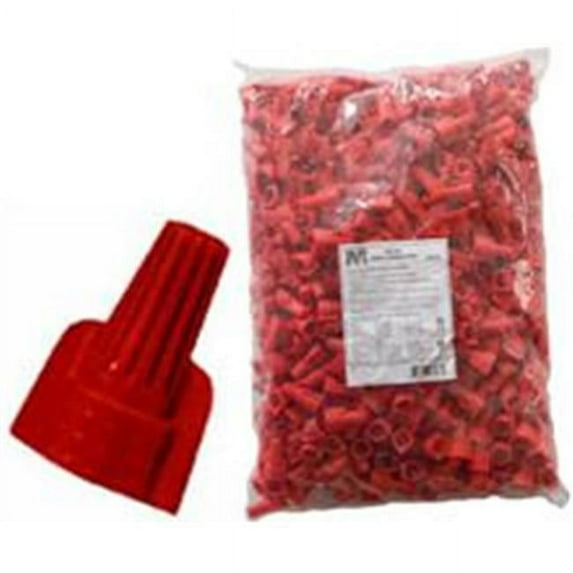

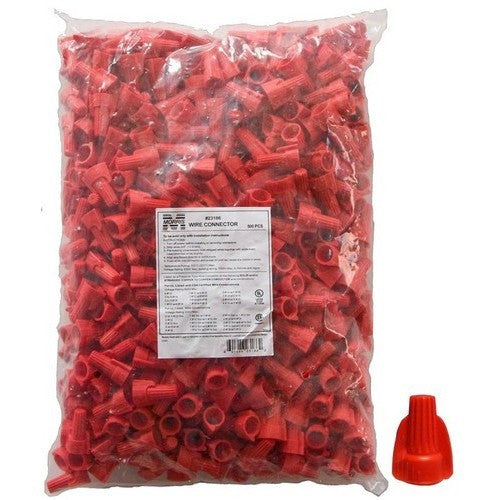

Morris 23186 wing connector 600/1000V 500 bulk

Product Description

The Morris Products Inc 23186 Winged Twist Connector is designed for secure electrical wiring connections. It accommodates 16 to 12 AWG wire, featuring a thermoplastic housing rated for 600/1000 V. The connector's winged design provides extra torque leverage, while a ribbed cap ensures a secure grip. Its deep skirt entry protects against flashover, and the UL 94V-2 flame retardant housing offers durability. This reusable connector is temperature-rated up to 221 degrees Fahrenheit.

• Winged design provides extra torque leverage for easy twisting.
• Accommodates 16 to 12 AWG wire for various applications.
• Features a deep skirt entry for flashover protection and a UL 94V-2 flame retardant thermoplastic housing.

Product Highlights

Winged twist connector with thermoplastic housing, rated for 600/1000V and 221°F, designed for secure wire connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 23186

Technical Specifications

• MPN: 23186
• SKU: H1064153H
• Voltage Rating: 600/1000 V
• Wire Gauge Range: 16 to 12 AWG
• Housing Material: Thermoplastic
• Maximum Operating Temperature: 221 deg F
• Flame Retardancy: UL 94V-2
• Wire Combinations: No.18 Thru 8 Awg, Min 3 No. 16
