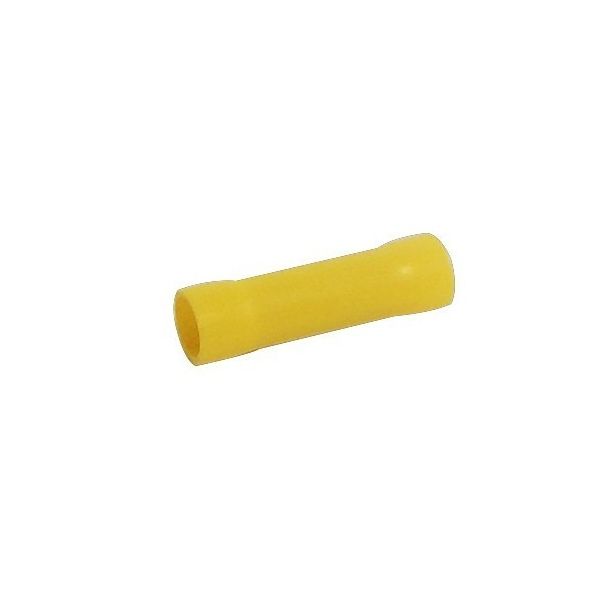

Morris 10186 Vinyl Insulated Butt Splice Connectors 12-10 AWG

Product Description

The Morris 10186 vinyl insulated butt splice connectors work with twelve to ten AWG conductors. Made from strong electrolytic copper, these connectors are electro tin-plated to resist corrosion. They include a center wire stop barrier and color-coded insulation for easy identification. Rated for up to six hundred VAC and a maximum current of thirty-five to fifty amps, these connectors serve various electrical applications well.

• Constructed from electrolytic copper
• Electro tin-plated for protection against corrosion
• Color-coded for easy identification

Product Highlights

Reliable connections and simple identification for electrical tasks.

Product Information

Standard Information

• Brand: Morris
• Material: Vinyl

Technical Specifications

• MPN: 10186
• UPC: 601986101868
• Conductor Size: 12 to 10 AWG
• Voltage Rating: 600 VAC
• Barrel Type: Butted Seam/Funnel Entry
• Finish: Electro-Plated Tin
• Temperature Rating: 75 degrees C
• Maximum Electric Current: 35 to 50 A
