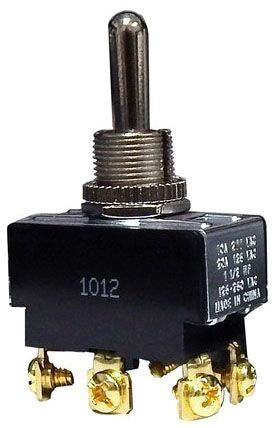

Moroso 70110 Heavy Duty Toggle Switch Dpdt on Off on

Product Description

The MOROSO 70110 is a heavy-duty double-pole double-throw (DPDT) toggle switch rated for ON/OFF/ON operation. It provides reliable manual switching in demanding electrical circuits where a single switch must control two independent circuits or reverse polarity. The three-position action — ON, OFF, and ON — makes it well-suited for applications requiring directional control or dual-circuit switching. Licensed electricians and motorsport or automotive electrical technicians are the typical installers for this type of component.

This toggle switch is commonly used in automotive, racing, and light industrial electrical panel applications where a robust, heavy-duty switch mechanism is required. The DPDT configuration allows it to handle more complex wiring schemes than a standard single-pole switch, making it a practical choice for auxiliary power circuits, motor reversing circuits, and relay bypass applications in performance vehicles or shop equipment.

Key Features

• Double-pole double-throw (DPDT) configuration for dual-circuit control
• Three-position operation: ON/OFF/ON for directional or dual-output switching
• Heavy-duty construction for high-cycle and demanding environments
• Compact toggle form factor suitable for panel mounting

Compatibility

Designed as a heavy-duty DPDT toggle switch for use in automotive, racing, and auxiliary electrical panel installations where ON/OFF/ON switching is required.

Installation Notes

Installation should be performed by a qualified electrician or experienced automotive electrical technician. Disconnect all power to the circuit before removing or installing the switch. Follow applicable NEC guidelines or vehicle-specific wiring standards when routing and terminating switch leads. Do not exceed the switch rated current or voltage to avoid damage or failure.

Technical Specifications

• Switch Type: DPDT Toggle
• Switch Action: ON/OFF/ON
• UPC: 60198670110

Standard Information

• Brand: MOROSO
• Manufacturer Part Number: 70110
