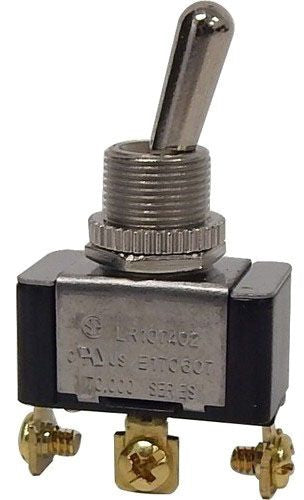

Moroso 70090 Heavy Duty Spdt Toggle Switch On/on

Product Description

The MOROSO 70090 is a heavy-duty single-pole double-throw (SPDT) toggle switch configured in an On/On switching arrangement. It is designed for demanding electrical control applications where a reliable, mechanical toggle is required to route a circuit between two active positions. This type of switch is commonly installed by electricians and automotive or motorsport electrical technicians in control panels, auxiliary circuit management systems, and similar high-use environments where switch durability is critical.

The 70090 suits applications requiring a robust On/On toggle that maintains a positive connection in either throw position. It is appropriate for use in custom wiring panels, race vehicle electrical systems, and other installations where a standard rocker or push-button switch may not provide adequate durability or positive feedback. Install locations vary but typically include dash panels, junction boxes, and control enclosures.

Key Features

• Single-pole double-throw (SPDT) configuration for two-circuit switching
• On/On action holds a live connection in both toggle positions
• Heavy-duty construction suited for high-cycle and high-vibration environments
• Mechanical toggle design provides positive tactile feedback at switchover

Compatibility

Designed as an OEM-style heavy-duty SPDT toggle switch for use in custom electrical control panel builds and auxiliary circuit applications.

Installation Notes

Installation should be performed by a qualified electrician or licensed technician familiar with low-voltage control wiring practices. De-energize the circuit completely before wiring or mounting the switch. Secure the switch body firmly to the panel to prevent rotation or loosening under vibration. Follow applicable NEC guidelines for wire gauge selection and termination method based on the circuit load.

Technical Specifications

• Switch Type: SPDT (Single-Pole Double-Throw)
• Switching Action: On/On
• UPC: 60198670090

Standard Information

• Brand: MOROSO
• Manufacturer Part Number: 70090
