Montigo DRSQ46NI-2 DelRay Full-Load 46 Square Direct-Vent Gas Fireplace

Product Description

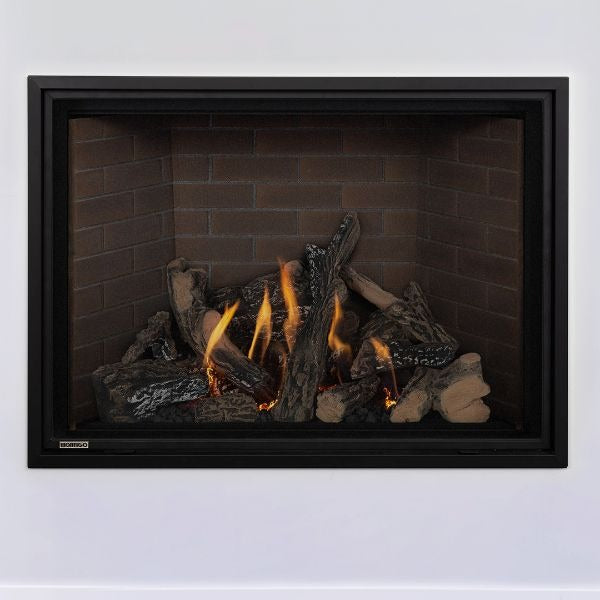

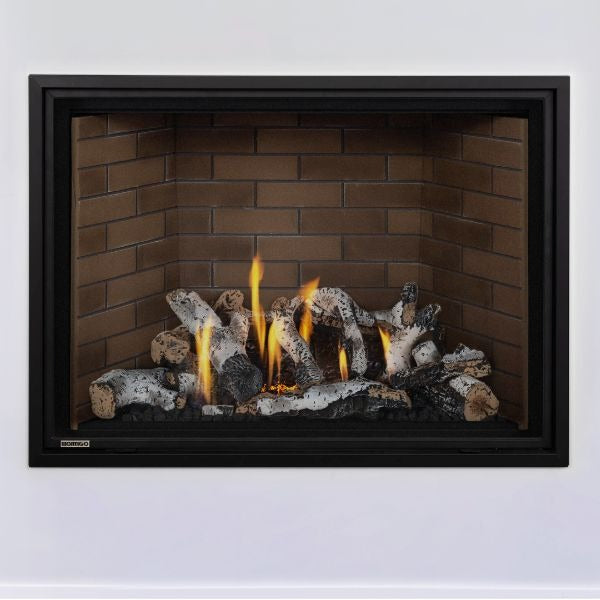

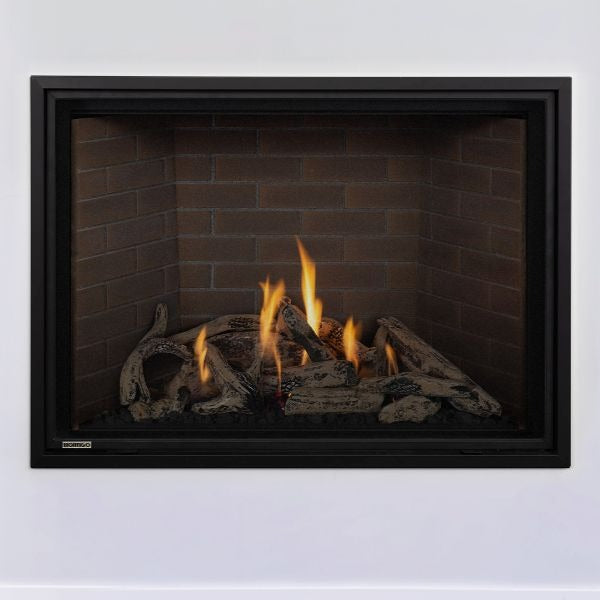

The MONTIGO DRSQ46NI-2 DelRay Square is a gas fireplace with contemporary styling and a small footprint, suitable for new construction and retrofit installations. It features a universal burner system convertible from natural gas to propane. The fireplace is customizable with log sets or contemporary scenes and allows combustible wood facing right down to the glass opening. The unit has a 5x8 vent size.

• Concealed universal burner
• Multi-function remote
• Micro mesh safety screen

Product Highlights

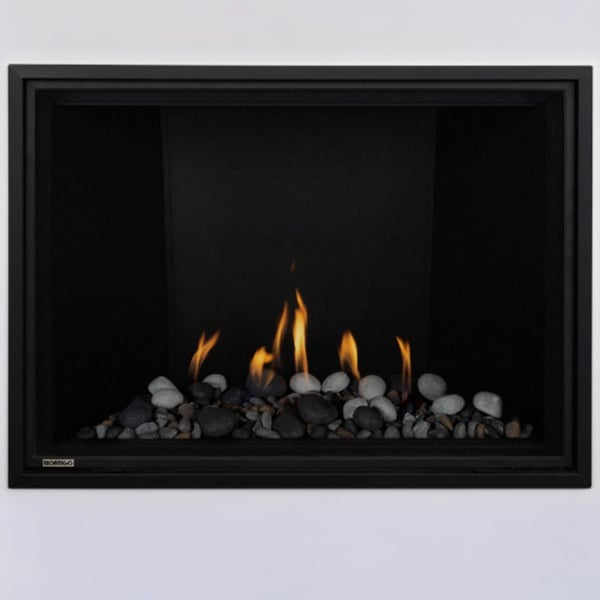

The DelRay Square offers high efficiency and can switch from traditional to contemporary burner media scenes without changing the burner system.

Product Information

Standard Information

• Brand: MONTIGO
• Manufacturer Part Number: DRSQ46NI-2

Technical Specifications

• Fuel Type: Propane | Natural Gas
• Vent Type: Direct-Vent
• Vent Size: 5x8
• Ignition Type: Electronic
• Installation Type: Zero-Clearance
• Style: Traditional
• Vent Inner Diameter: 5 Inches
• Vent Outer Diameter: 8 Inches
• Max. (BTU/HR): 40000 BTU's
• Min. (BTU/HR): 28000 BTU's
• Venting Type: Direct Vent
• Ignition: IPI - Intermittent Pilot Ignition
• Maximum Heat Output NG: 40,000 BTUs

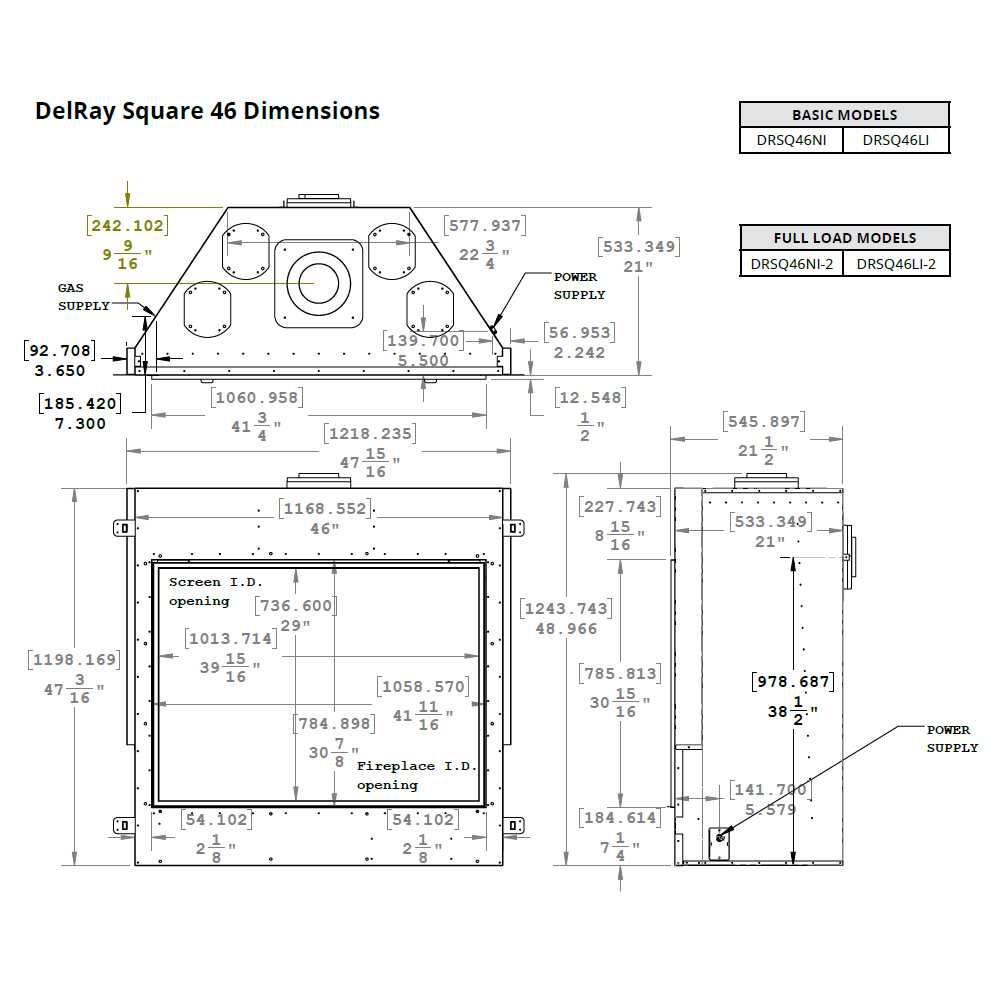

• Framing Width: 49"
• Framing Height: 55"
• Framing Depth: 22"
• Viewing Width: 41.6875"
• Viewing Height: 30.875"
• Front Glass Type: High Temperature Glass
• Commercial: No
• P.4. 1-15 Efficiency NG/LP: 64.1% / 64.7%
