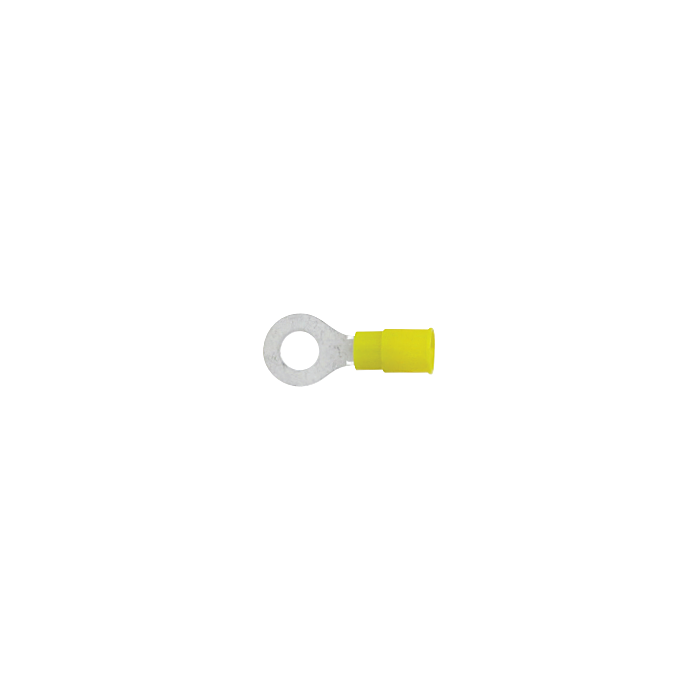

Monti Associates ma02534-1 Insulated Ring Terminal 12-10 Awg

Product Description

The MONTI ASSOCIATES ma02534-1 is an insulated ring terminal designed for securing electrical conductors to stud-mounted connection points. Built for 12-10 AWG wire, it provides a reliable, vibration-resistant termination with insulation that protects against accidental contact and corrosion. The 1/4 inch stud size makes it a common choice for panel connections, equipment grounding, and general wiring applications. Sold in packs of 10, this terminal is suitable for electricians and technicians who need consistent, code-compliant terminations across multiple circuits or connection points in a single job.

This ring terminal is used in residential and light commercial electrical work where a secure, insulated lug connection is required. Typical applications include control panel wiring, equipment bonding, and branch circuit terminations. The 12-10 AWG range accommodates standard branch circuit conductors commonly found in HVAC equipment wiring, motor connections, and general electrical installations. The 10-piece pack quantity suits service calls and small-scale wiring projects.

Key Features

• Insulated construction for safer terminations and protection against accidental contact
• Compatible with 12-10 AWG wire for standard branch circuit and equipment wiring
• 1/4 inch stud size fits common panel and equipment connection points
• Sold in a 10-pack for efficient use across multiple termination points
• Ring-style lug provides a secure, captive connection that resists pull-out

Compatibility

Designed as a standard insulated ring terminal for use with 12-10 AWG conductors and 1/4 inch mounting studs in general electrical wiring applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating or removing ring terminals. Use an appropriate wire stripper and crimping tool rated for insulated terminals to ensure a secure, code-compliant crimp. Do not solder over a crimped insulated terminal, as this can compromise the insulation integrity.

Technical Specifications

• Wire Gauge: 12-10 AWG
• Stud Size: 1/4 inch
• Type: Ring Terminal
• Pack Quantity: 10

Standard Information

• Brand: MONTI ASSOCIATES
• Manufacturer Part Number: ma02534-1
