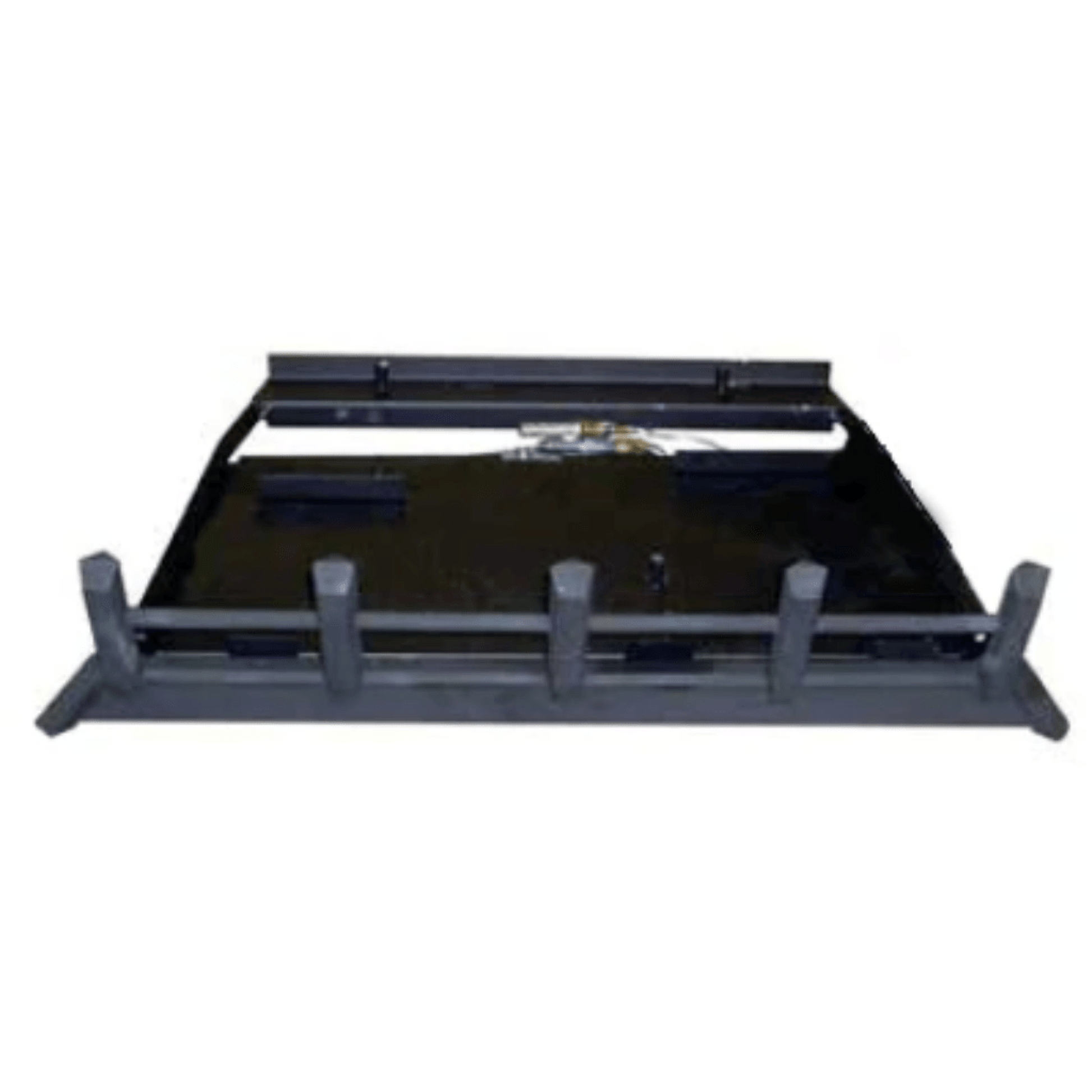

Monessen NB24PV-B Natural Blaze 24 inches Millivolt Vent Free Burner - LP

Product Description

The Monessen NB24PV-B Natural Blaze burner system includes an Oxygen Depletion System to quickly shut off the gas if room oxygen levels drop to unsafe levels. It is for use in a vent free firebox. It is a millivolt burner and can be operated manually at the burner or with a remote. It is for use with Liquid Propane and will accommodate several 24" and 30" Monessen log sets.

• Includes an Oxygen Depletion System
• For use in a vent free firebox
• Millivolt burner can be operated manually or with a remote (sold separately)

Product Highlights

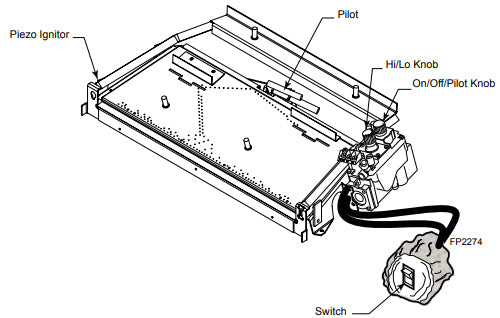

The burner includes a cast iron grate, volcanic rock, rock wool, an ON/OFF log switch assembly and manual variable flame height control. It delivers 36,000 BTUs when used with Liquid Propane.

Product Information

Standard Information

• Brand: MONESSEN
• Manufacturer Part Number: NB24PV-B

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vent Free
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 24" / 30"
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 36000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Optional
• Gas Connection Size: 3/8"
• Manifold Pressure (in.): 10.0" w.c.
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Requirements for 24" or 30" Logs: Req. Min. Front Width (in.) - 24"
• Req. Min. Front Width (in.) - 30": 33"
• Req. Min. Rear Width (in.) - 24": 22.25"
• Req. Min. Rear Width (in.) - 30": 25.25"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
• Size: 24"
• BTU/hr Input: 28,000 - 36,000 BTU/HR
• Ignition System: Millivolt Control
