Monessen NB18PV-B Natural Blaze Millivolt Vent Free Burner - LP 18 inches

Product Description

The Monessen NB18PV-B Natural Blaze burner system includes an Oxygen Depletion System that quickly shuts off the gas if room oxygen levels drop to unsafe levels. It is for use in a vent free firebox and accommodates several 18" Monessen log sets. The millivolt burner can be operated manually or with a remote (sold separately).

• Includes an Oxygen Depletion System.

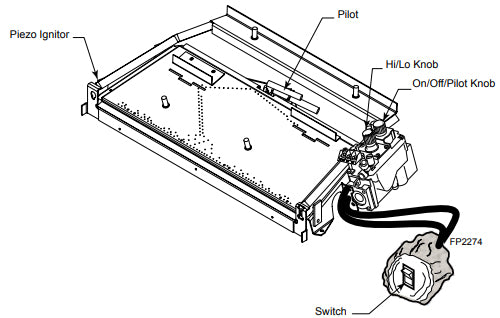

• Features a cast iron grate, volcanic rock, rock wool, an ON/OFF log switch assembly and manual variable flame height control.
• Remote ready with millivolt ignition.

Product Highlights

The Monessen Natural Blaze burner provides taller, more lively flames, creating a realistic, moving fire. It is for use with Liquid Propane.

Product Information

Standard Information

• Brand: MONESSEN
• Manufacturer Part Number: NB18PV-B

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vent Free
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 18"
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 27000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Optional
• Gas Connection Size: 3/8"
• Manifold Pressure (in.): 10.0" w.c.
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 26"
• Req. Min. Rear Width (in.): 18"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
• Size: 18"
• BTU/hr Input: 22,000 - 27,000 BTU/HR
• Ignition System: Millivolt Control
