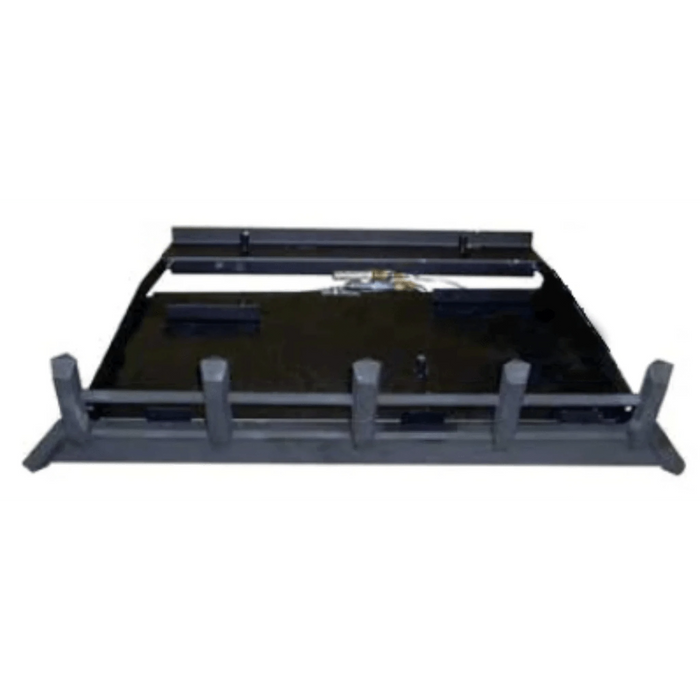

Monessen NB18NV-B Natural Blaze Millivolt Vent Free Burner - NG 18 inches

Product Description

The Monessen NB18NV-B Natural Blaze millivolt vent-free burner system includes an Oxygen Depletion System. Designed for use in a vent-free firebox, it operates manually or with a remote (sold separately). Compatible with Natural Gas and several 18" Monessen log sets, it features a cast iron grate, volcanic rock, rock wool, and an ON/OFF log switch assembly with manual variable flame height control.

• Includes an Oxygen Depletion System
• For use in a vent free firebox
• Millivolt burner
• Can be operated manually or with a remote (sold separately)
• For use with Natural Gas
• Accommodates several 18" Monessen log sets

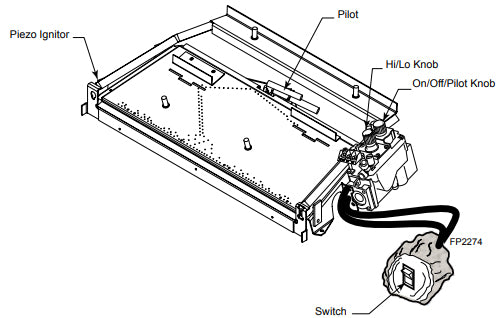

• Includes a cast iron grate, volcanic rock, rock wool, an ON/OFF log switch assembly and manual variable flame height control
• Millivolt burners are remote ready but a remote is not included
• Includes 28,000 BTUs when used with Natural Gas
• Life-like dancing yellow flames
• Requires a log set

Product Highlights

This Monessen Natural Blaze burner features a millivolt ignition system, variable flame height control, and an oxygen depletion system for safety. It delivers up to 28,000 BTUs with natural gas.

Product Information

Standard Information

• Brand: MONESSEN
• Manufacturer Part Number: NB18NV-B
• Country of Origin: United States

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vent Free
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 18"
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 28000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Optional
• Gas Connection Size: 3/8"
• Manifold Pressure (in.): 3.5" w.c.
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 26"
• Req. Min. Rear Width (in.): 18"
• Req. Min. Depth (in.): 13"
• Req. Min. Height (in.): 17"
• Brand: Monessen
• Type: Fireplace - Vent Free Burner
• Power Source: Gas
• Model: NB18NV
• Features: Vent Free
• MPN: NB18NV
• UPC: Does not apply
• Country of Origin: United States
• Size: 18"
• BTU/hr Input: 19,000 - 28,000 BTU/HR
• Ignition System: Millivolt Control
