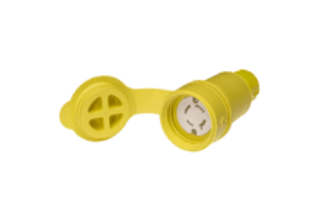

Molex 27W75 Watertight Connector 3-Phase 250 VAC 20 A L15-20

Product Description

The Molex 27W75 is a watertight connector designed for harsh conditions. It is a three-phase connector rated for 250 volts and 20 amps. This device is suited for environments that require high-pressure washdown capabilities, making it ideal for breweries, dairies, and wastewater treatment facilities.

• Rated for high-pressure hose down applications up to 1000 psi.
• Constructed with NEoTEX paracril OZO rubber for durability.
• IP67 enclosure for protection against moisture and contaminants.

Product Highlights

This connector is built to withstand extreme conditions with features that enhance its reliability, including a sturdy cord grip and multiple sealing mechanisms for moisture protection.

Product Information

Standard Information

• Brand: Molex
• Part Number: 27W75

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• NEMA Rating: L15-20
• Temperature Rating: -40 to 75 degrees C
• Cord Diameter: 11/16 to 13/16 in
• Material: Rubber
• Enclosure: IP67
• Series: 130147
• Standards: CSA File No. LR6837 | UL File No. E10176
