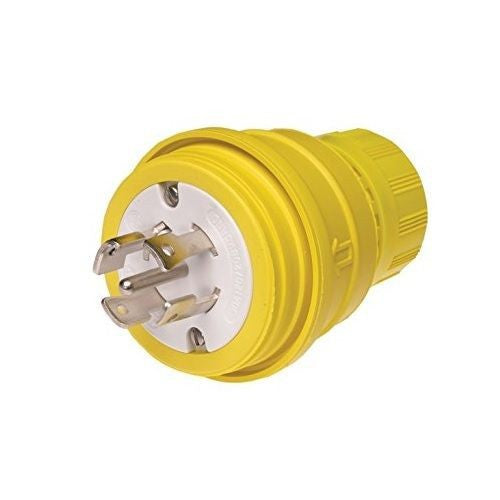

MOLEX 130147-0086 Woodhead Watertite 3-Phase Male Plug

Product Description

The MOLEX 130147-0086 is a Woodhead Watertite 3-phase male plug suitable for wet environments. Made from NEo-TEX Paracril OZO rubber, it demonstrates durability across various temperatures and has strong resistance to oils, chemicals, and abrasion.

• Designed with multiple ring seals for protection against moisture and contaminants.
• Features compression-type cord grip for enhanced pull-out strength.
• Rated for high-pressure hose-down applications up to one thousand psi.

Product Highlights

This male plug is compliant with IP67 standards, ensuring reliable performance in demanding conditions.

Product Information

Standard Information

• Brand: MOLEX
• MPN: 130147-0086

Technical Specifications

• Product Series: 130147
• Material: Rubber
• Voltage Rating: 480 VAC
• Amperage Rating: 30 A
• Number of Poles: 4
• Number of Wires: 5
• Enclosure Rating: IP67
• Operating Temperature: -40 to 75 degrees Celsius
• Terminal Type: Wire Screw
• Plug Type: Male
• Application: Suitable for breweries, dairies, food and beverage, wastewater treatment, and wet locations
• Standards and Approvals: CSA Certified, RoHS Compliant, UL Listed
• NEMA Rating: NEMA L22-30
• Cord Diameter: 1 inch
