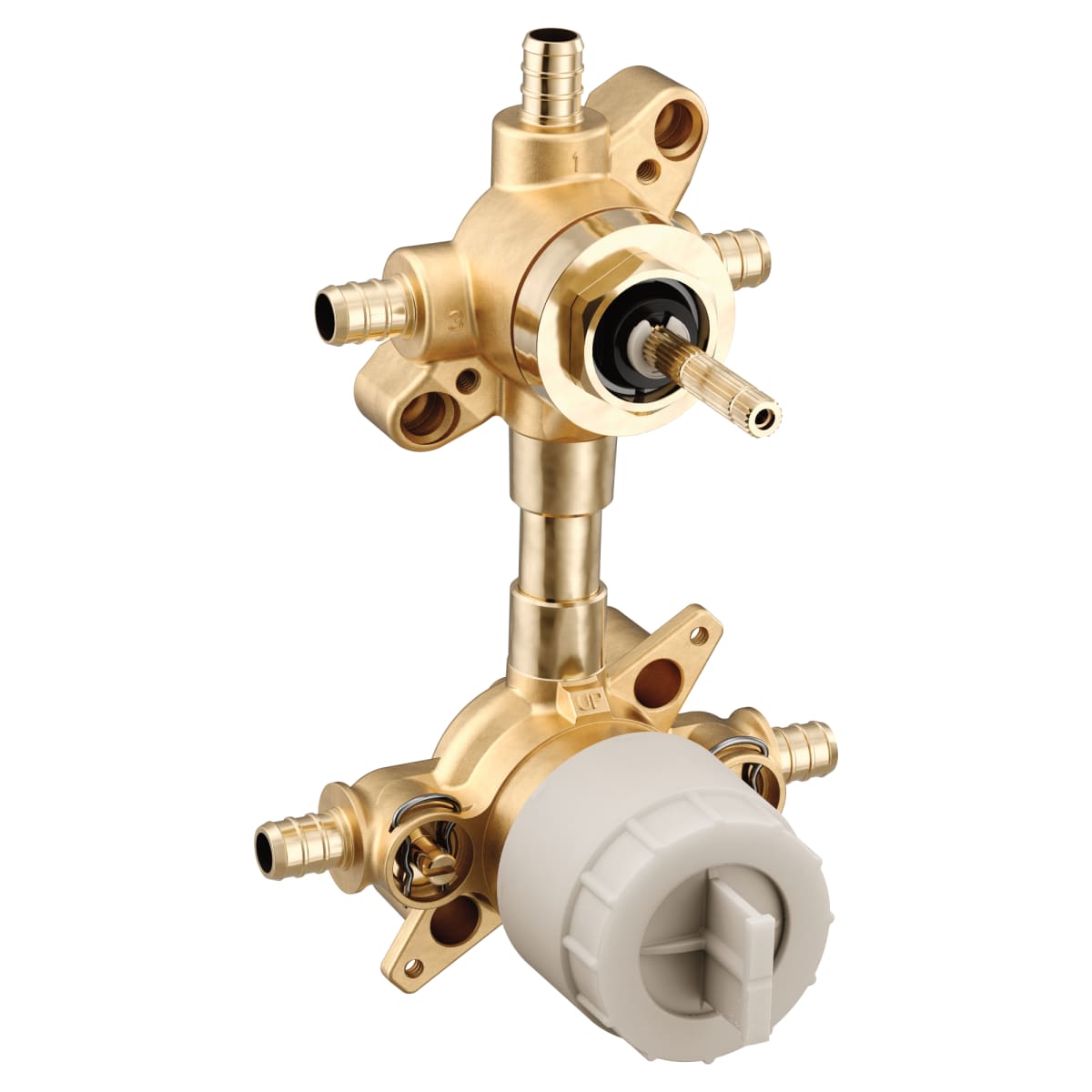

Moen U362XS 1/2 in. PEX Transfer Valve

Product Description

The Moen U362XS is a 1/2 inch PEX transfer valve designed for both residential and light commercial use. This valve allows for the control of multiple showering devices ensuring optimal flow management. It features versatile functionality including the ability to switch between two or three outlets. It is constructed with durable ceramic components and a robust brass body.

• Compatible with 2 or 3 showering devices
• Pressure balancing for temperature control
• Flexible installation options

Product Highlights

The Moen U362XS supports two independent functions when used with two devices and three independent functions with three. It integrates well with the M-CORE collection and offers easy updates for style choices without reworking plumbing.

Product Information

Standard Information

• Brand: Moen
• MPN: U362XS

Technical Specifications

• Inlet Size: 1/2 inch Crimp Ring PEX
• Outlet Size: 1/2 inch Crimp Ring PEX
• Pressure Rating: 200 psi Air, 300 psi Water
• Temperature Rating: 160°F
• Cartridge Type: Durable Ceramic
• Material: Brass
• Height: 7-1/2 inch
• Width: 4-7/8 inch
• Includes: Quarter Turn Stop, Test Plug, Pressure Balancing Stops, Volume Control
• Warranty: Lifetime limited warranty against leaks and drips
• Standards/Approvals: ASME A112.18.1/CSA B125.1, ASSE 1016
