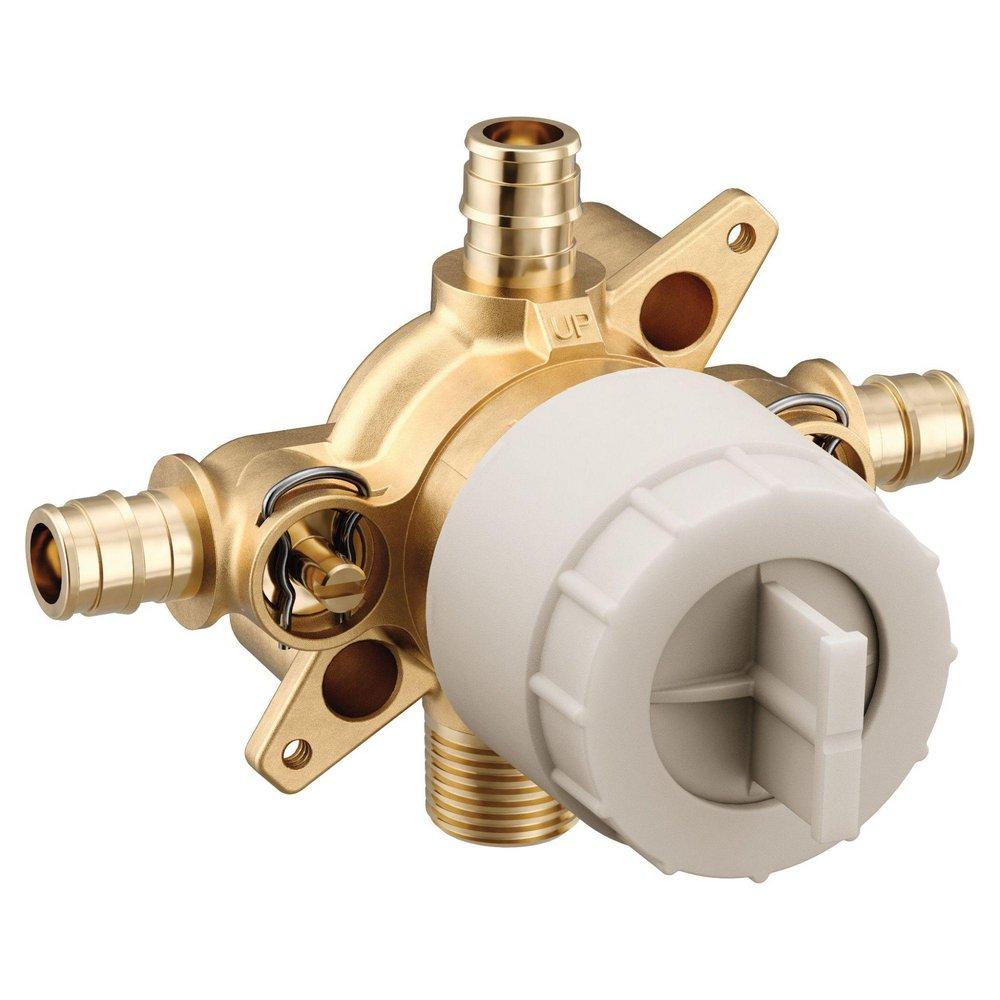

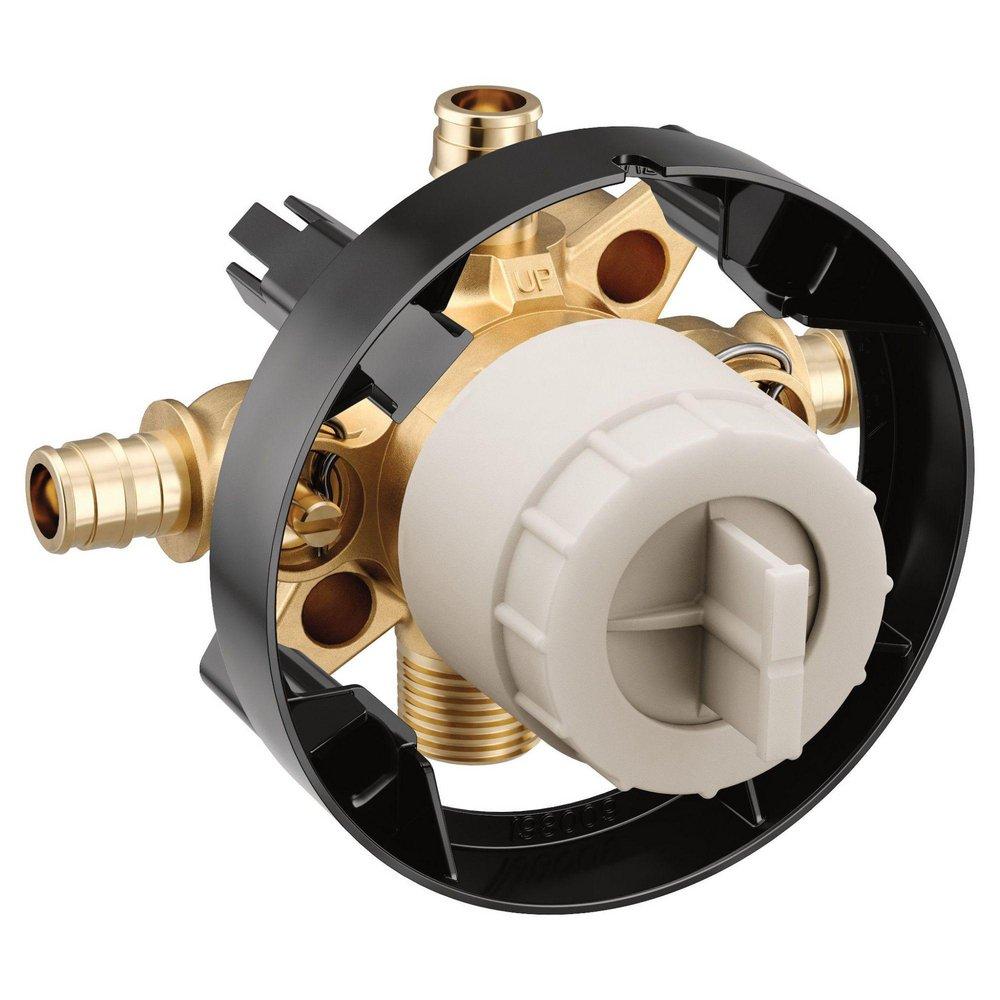

Moen U140CXS M-Core 1/2 in. Cold Expansion PEX Connection Pressure Balancing Valve with Stops

Product Description

The Moen U140CXS is a pressure balancing valve suitable for controlling water temperature and flow in residential and commercial applications. It features a 1/2 inch cold expansion PEX connection along with integrated stops for superior functionality. This valve is designed to offer versatility and efficiency in your plumbing system.

• Pressure balancing capabilities to manage temperature fluctuations
• Volume control for adjustable water flow
• Compatible with various trim styles for design flexibility

Product Highlights

This Moen valve offers a reliable solution for maintaining consistent water temperature during use. It can accommodate a range of trim options, allowing for customization in any bathroom or shower setup.

Product Information

Standard Information

• Brand: Moen
• MPN: U140CXS

Technical Specifications

• Inlet Size: 1/2 inch
• Outlet Connection: 1/2 inch CC/IPS
• Material: Brass
• Pressure Rating: 200 psi air, 300 psi water
• Temperature Rating: 160 degrees F
• ADA Compliance: No
• Includes: Quarter turn stop, test plug
• Warranty: Lifetime limited warranty
