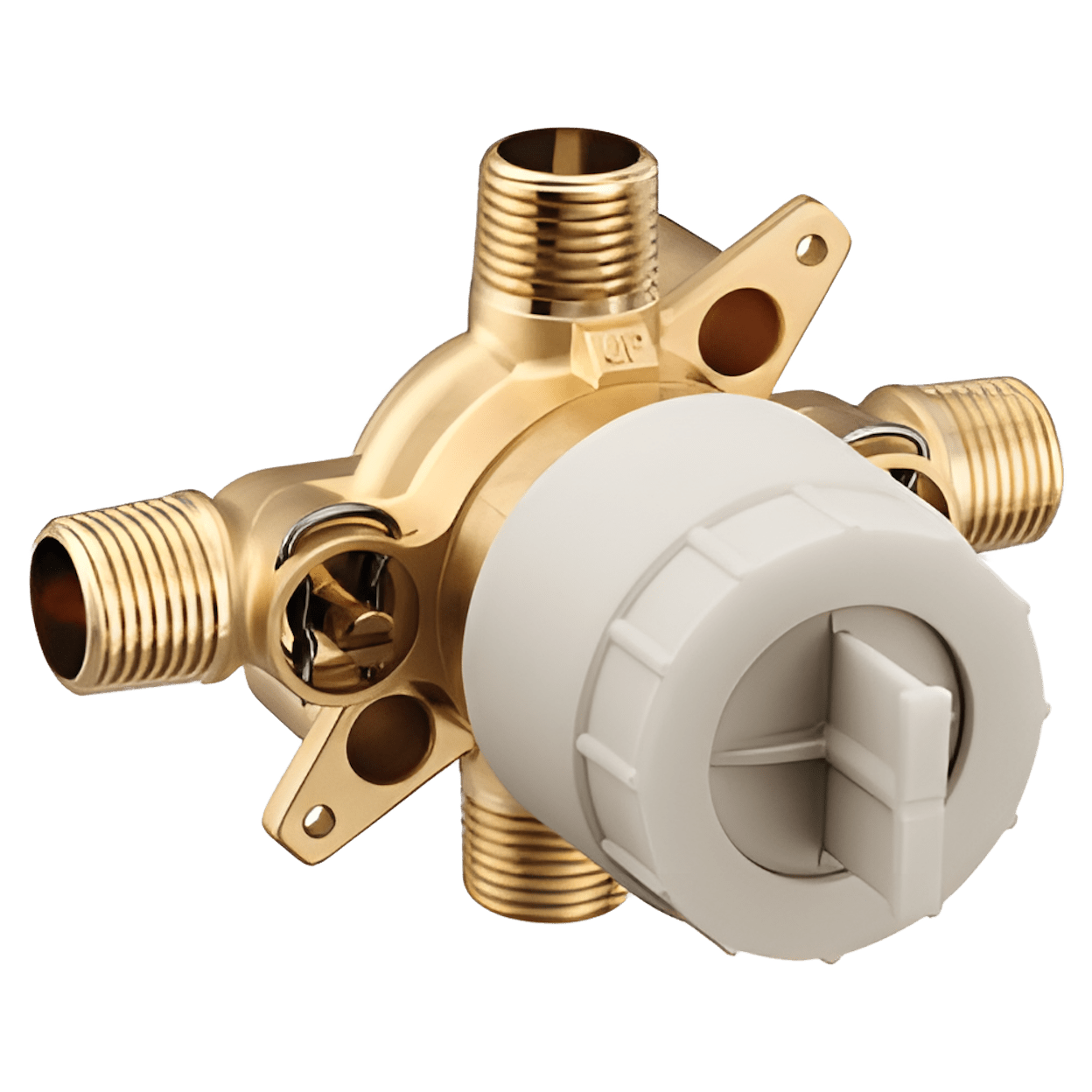

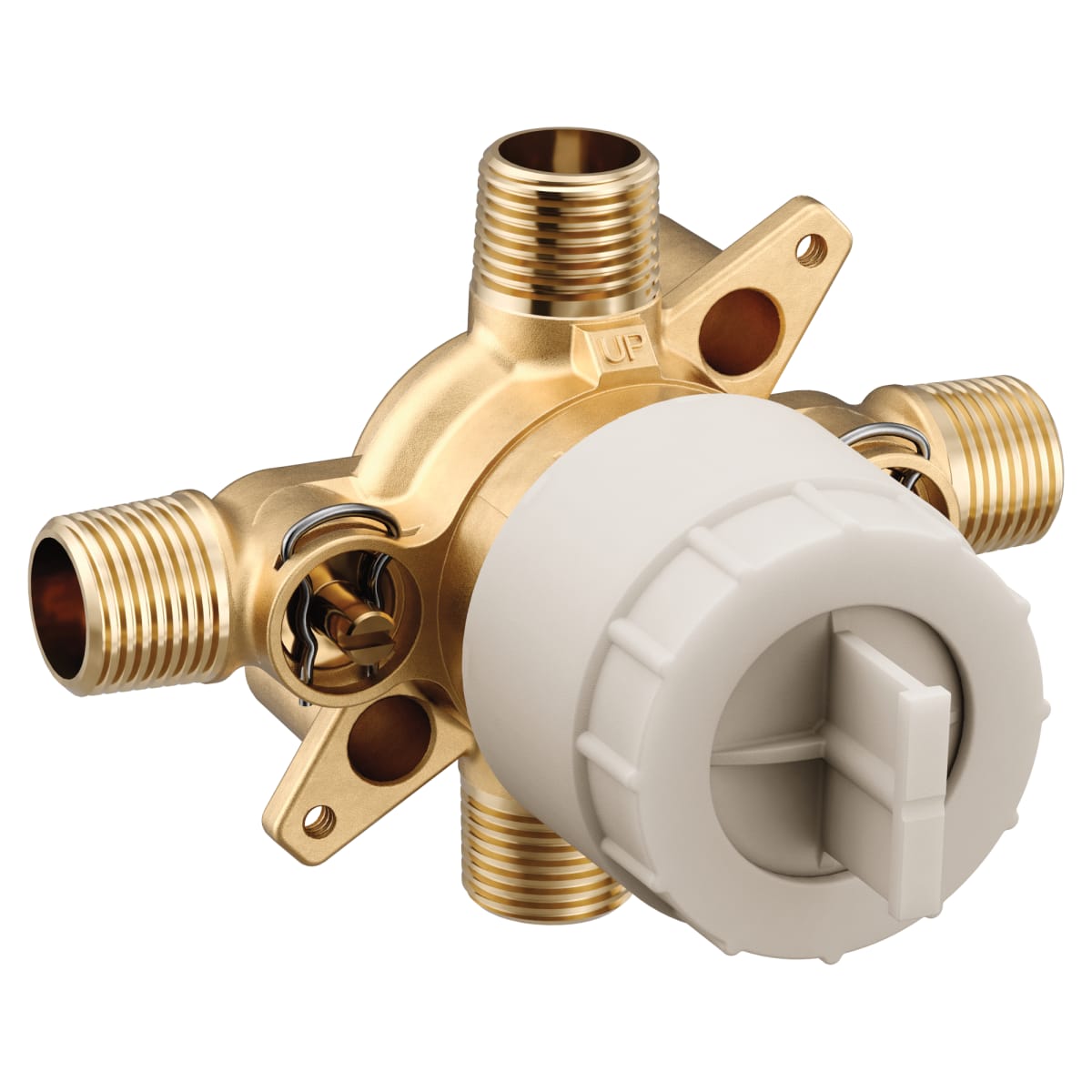

Moen U140CIS M-CORE 4 Port Tub and Shower Pre-Fabricated Mixing Valve with CC/IPS Connections and Stops

Product Description

The Moen M-CORE 4 Port Tub and Shower Pre-Fabricated Mixing Valve, model U140CIS, provides reliable temperature control with pressure-balancing features. It is designed with convenience in mind for both installations and future updates. This valve connects via CC/IPS and comes with stops for added safety.

• Pressure-balancing technology for consistent water temperature
• Compatible with various trim styles for design flexibility
• Simple installation with integrated mounting bracket

Product Highlights

This valve adapts to various shower configurations and allows for style updates without needing to change plumbing.

Product Information

Standard Information

• Brand: Moen
• MPN: U140CIS

Technical Specifications

• Inlet Size: 1/2 inch CC/IPS
• Outlet Size: 1/2 inch CC/IPS
• Material: Brass
• Width: 4-7/8 inch
• Depth: 2-1/2 inch
• Pressure Rating: 200 psi (Air), 300 psi (Water)
• Temperature Rating: 160 Deg F
• Warranty: Lifetime Limited
• Standards/Approvals: ASME A112.18.1/CSA B125.1, ASSE 1016
