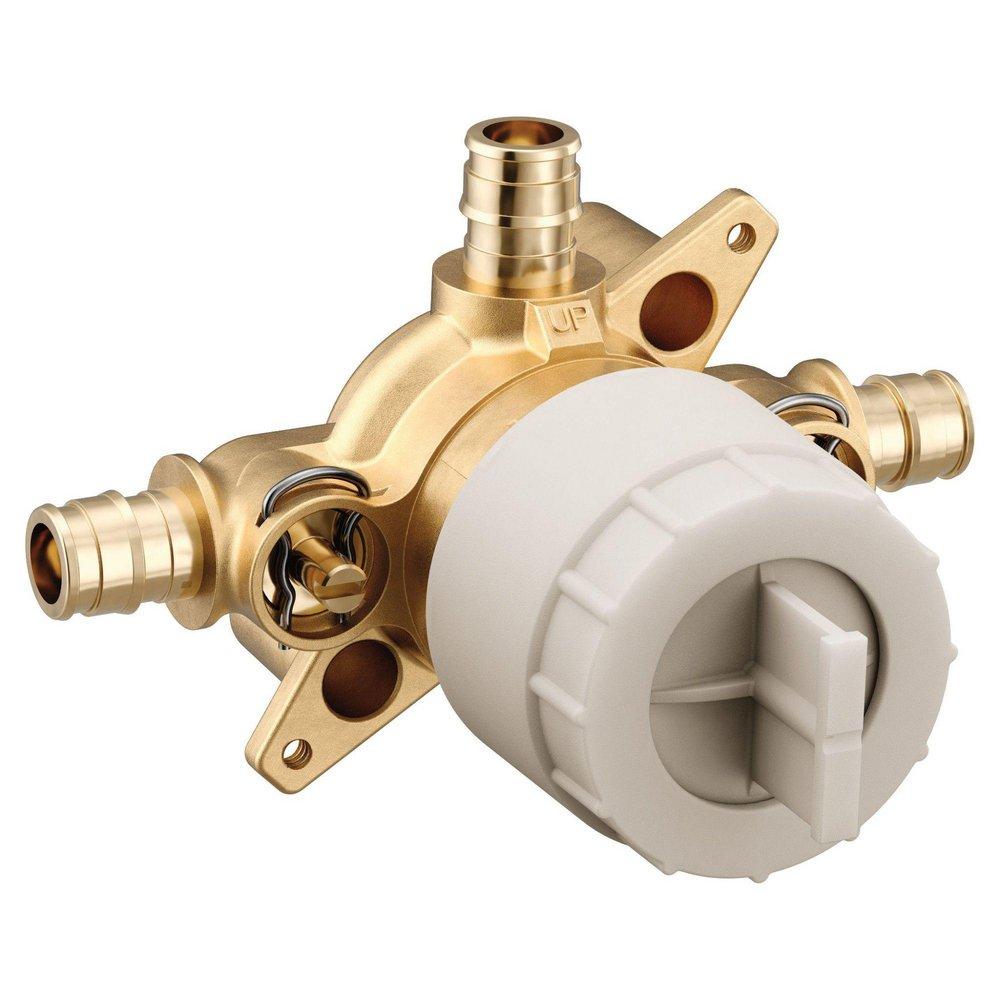

Moen U130CXS M-Core 1/2 in. Cold Expansion PEX Connection Pressure Balancing Valve with Stops

Product Description

The Moen U130CXS is a M-Core 1/2 inch cold expansion PEX connection pressure balancing valve with stops. This valve has a pressure-balancing feature to maintain water temperature during pressure changes. It provides control of water flow and allows for customization of style options.

• Pressure balancing capabilities for consistent temperature
• Volume control for flow adjustment

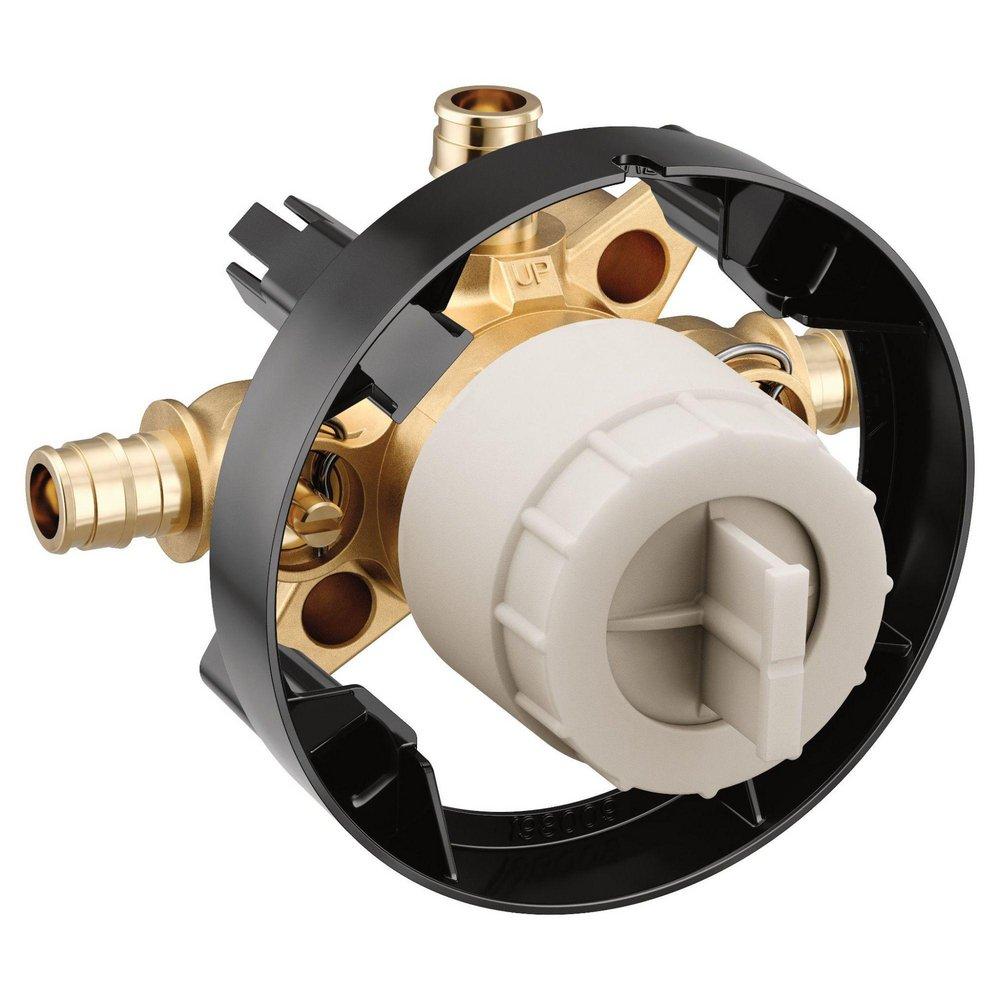

• Integrated mounting bracket for easy installation

Product Highlights

This valve is designed for both commercial and residential applications. It has a lifetime limited warranty against leaks and defects for the original homeowner.

Product Information

Standard Information

• Collection: M-Core
• Warranty: Lifetime Limited against leaks and defects

Technical Specifications

• Inlet Connection: 1/2 inch Cold Expansion PEX
• Outlet Connection: 1/2 inch Cold Expansion PEX
• Material: Brass
• Pressure Rating: 200 psi Air, 300 psi Water
• Temperature Rating: 160 Deg F
• Size: Width 5 inches, Depth 2.5 inches
• Includes: Quarter Turn Stop, Test Plug
• Standards/Approvals: ASME A112.18.1/CSA B125.1, ASSE 1016
