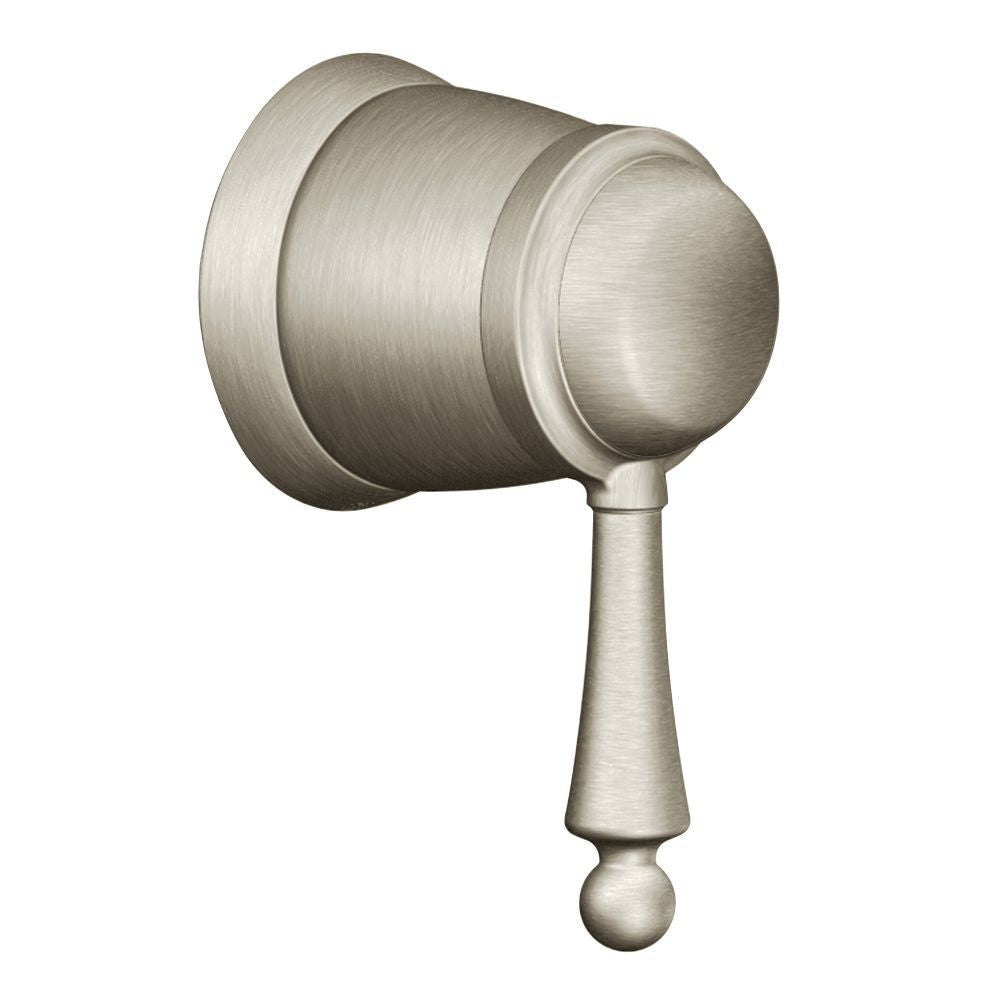

Moen ts514bn Waterhill Volume Control Trim

Product Description

The MOEN ts514bn is a volume control trim designed for use in shower and bath systems. It provides precise water flow adjustment without controlling temperature, making it a dedicated flow-control component in multi-function valve configurations. The brushed nickel finish delivers a matte metallic appearance suited to residential bathroom installations. Licensed plumbers and finish trim installers work with this piece during new construction and remodel projects where a separate volume control is specified in the plumbing plan.

This trim fits into shower valve rough-in systems where volume control is handled independently from thermostatic or pressure-balance temperature control. It is typically specified in master bath and primary bath applications where multi-port valve bodies are used to supply body sprays, rain heads, or handheld shower outlets alongside a primary showerhead. The Waterhill design series integrates a traditional style profile consistent with coordinating MOEN fixtures.

Key Features

• Volume control function allows independent flow adjustment at the trim point
• Brushed nickel finish resists water spots and everyday wear in wet environments
• Waterhill series design for use in coordinated multi-fixture bath configurations
• Trim-only component pairs with a compatible MOEN valve body rough-in

Compatibility

Designed as an OEM-style volume control trim replacement for MOEN Waterhill series shower valve systems. Specific valve body compatibility was not provided in the available product data. Verify the matching rough-in valve part number before ordering.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before removing any existing trim or working on the valve body. This is a trim-only component and does not include a valve body. Do not overtighten trim components against finished surfaces to avoid finish damage.

Technical Specifications

• Finish: Brushed Nickel
• Function: Volume Control
• Series: Waterhill
• Component Type: Trim Only (valve body sold separately)

Standard Information

• Brand: MOEN
• Manufacturer Part Number: ts514bn
