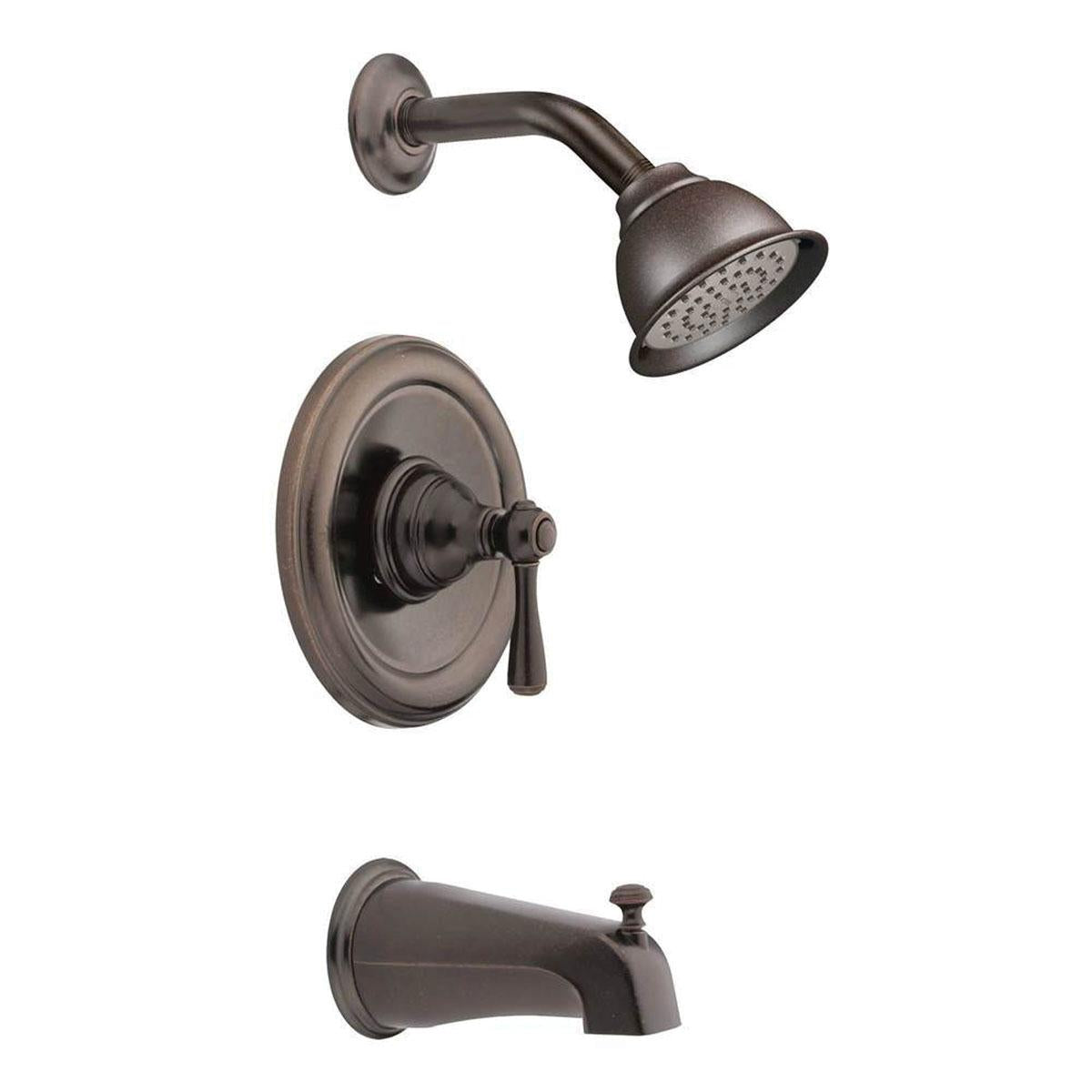

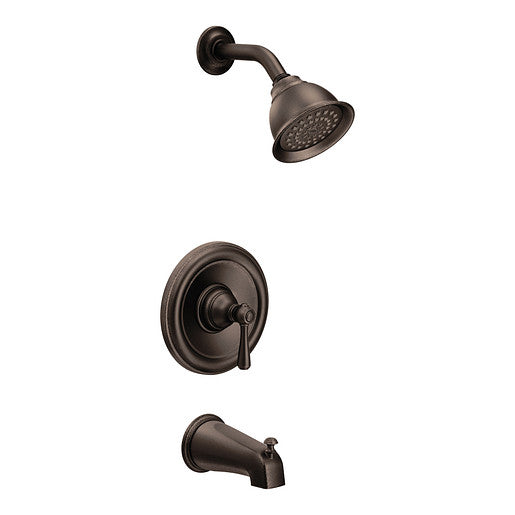

Moen T2113ORB 1-Handle Posi-Temp Tub and Shower Trim Kit 2.5 GPM

Product Description

Moen T2113ORB is a 1-handle Posi-Temp tub and shower trim kit designed to work with Moen Posi-Temp pressure-balancing control valves. The trim provides a lever-style handle, a single-function 4-3/8-inch showerhead delivering up to 2.5 GPM, and a 5-1/2-inch diverter tub spout. The kit is wall-mounted, constructed primarily of metal, and meets ASME A112.18.1 and CSA B125.1 standards; valve is required but not included.

• Posi-Temp pressure-balancing trim for stable shower temperature control
• Single-function 4-3/8-inch showerhead with 2.5 GPM (9.5 L/min) max flow
• Includes lever handle, trim plate, showerhead, adjustable arm and flange, and 5-1/2-inch diverter tub spout; requires Moen Posi-Temp valve (not included)

Product Highlights

1-handle Posi-Temp trim kit; 4-3/8" single-function showerhead at 2.5 GPM; valve not included

Product Information

Standard Information

• Brand: MOEN
• Manufacturer Part Number: T2113ORB

Technical Specifications

• Brand: Moen
• Manufacturer Part Number: T2113ORB
• Model Number: T2113ORB
• Product Type: Posi-Temp tub and shower trim kit (trim only, valve not included)
• Series / Collection: T2113 Series / Kingsley
• Number of Handles: 1
• Mounting Type: Wall mount / Single-hole
• Cartridge Type: Pressure balance (Posi-Temp)
• Flow Rate: 2.5 GPM (9.5 L/min) max
• Shower Head Diameter: 4-3/8 inches
• Shower Head Functions: One-function
• Shower Head Included: Yes
• Shower Arm: Adjustable arm and flange included
• Tub Spout Type: Diverter (slip-fit)
• Tub Spout Length: 5-1/2 inches
• Valve Compatibility: Requires Moen Posi-Temp valves (e.g., 2510, 2520, 2570, 2580, 2590) (valve not included)
• Connection Type: CC, IPS
• Connection Size: 1/2 in, 5/8 in
• Escutcheon Width: 7 in
• Overall Dimensions (L x W x H): 7.8 x 7.7 x 4.4 in
• Item Weight: 1.588 lbs
• Material: Metal (brass/bronze components; spray face non-metallic)
• Finish: Oil rubbed bronze
• Standards / Certifications: ASME A112.18.1; CSA B125.1
• ADA Compliant: Yes
• Includes: Trim plate, lever handle, single-function showerhead, adjustable shower arm and flange, 5-1/2-inch tub spout, instruction manual
• UPC: 026508132388
• GTIN: 00026508132388
